SKF 7216 CD/HCP4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable

Recommended Retail Price €6,878.18

3,405.20 tax incl.

€2,814.21 excl. VAT (incl. all environmental contributions)

SKF 7216 CD/HCP4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable

€3,405.20 Recommended Retail Price €6,878.18

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

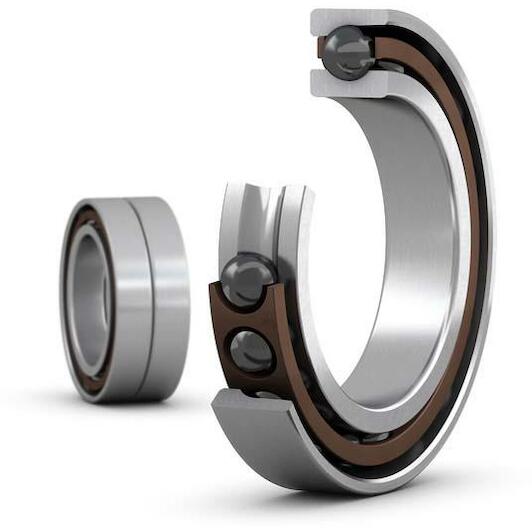

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

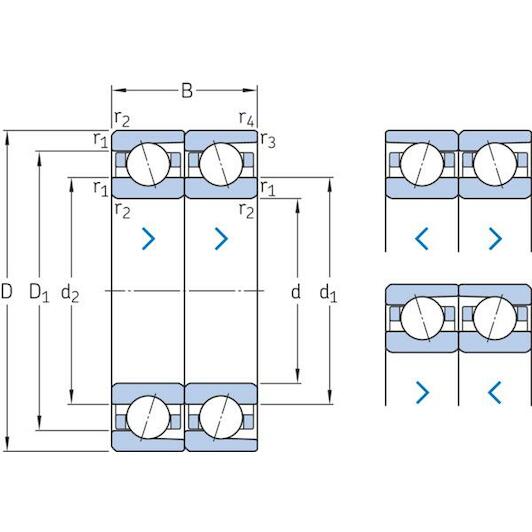

Inner diameter: 80 mm
Width: 52 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 140 mm

Specifications / All features

Brand: SKF
08124786
EAN: 07316574929221
Supplier number: SKF 7216 CD/HCP4ADGA

Inner diameter: 80 mm
Width: 52 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 140 mm
Basic static load rating: 150
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Hybrid (ceramic balls)

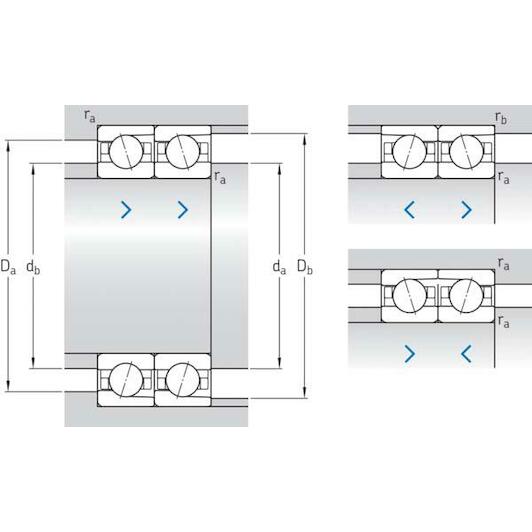

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 80
Basic dynamic load rating: 140
Coating: Without
Outside diameter: 140
Note: Refer to catalogue data or contact SKF for the attainable speeds
