SKF

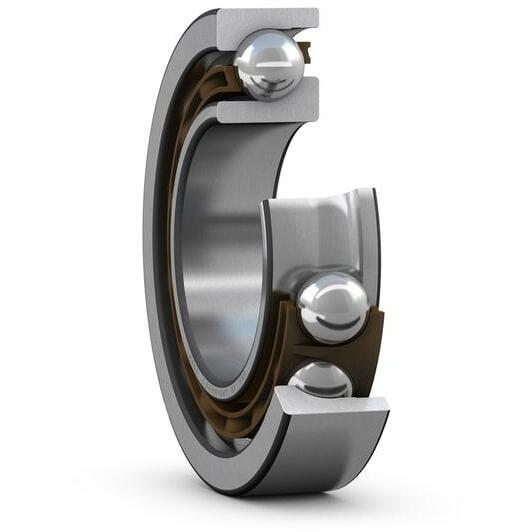

SKF 7216 BEGAP single-row angular contact ball bearing 80 mm

Recommended Retail Price €558.52
276.40 tax incl.
€228.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 26 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (cage): Plastic
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577610317
  • Supplier number: SKF 7216 BEGAP
Inner diameter
80 mm
Width
26 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (cage)
Plastic
Outer diameter
140 mm
Basic static load rating
69.5
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
5600
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
80
Contact angle
40
Limiting speed
5300
Matched condition (axial clearance/ preload)
Light preload
Basic dynamic load rating
80.6
Coating
Without
Outside diameter
140
Universal matching bearing
Yes
