What types of loads can this angular contact ball bearing support?

This single-row bearing accommodates combined radial and axial loads, with the axial load acting in one direction.

What are the exact dimensions of the SKF 7216 BECBP?

The bearing has an 80 mm bore diameter, a 140 mm outer diameter, and a width of 26 mm.

What is the purpose of the 40° contact angle?

The 40° contact angle provides a high axial load-carrying capacity in one direction.

What material is used for the cage?

This model features a glass-fibre reinforced polyamide (plastic) cage.

Is this bearing equipped with seals?

No, this is an open-type bearing without integrated seals.

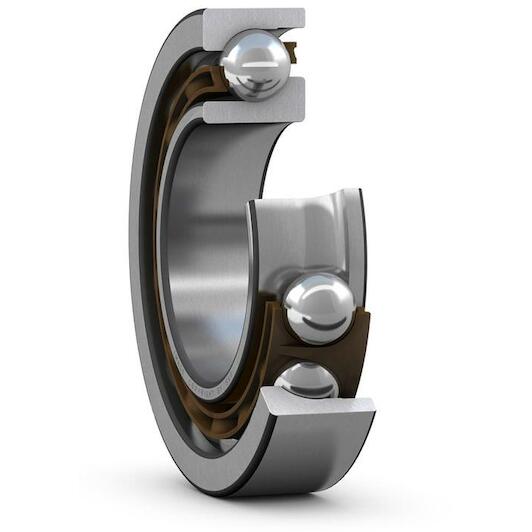

SKF 7216 BECBP single-row angular contact ball bearing 80 x 140 x 26 mm with contact angle 40°

Supplier number: SKF 7216 BECBP | EAN 7316576633607

Recommended Retail Price €543.81

269.20 tax incl.

€222.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with Skf

Practical benefits

High unidirectional axial capacity: Thanks to the 40° contact angle, you reliably support heavy unidirectional axial loads combined with radial forces.
Smooth high speed operation: The lightweight polymer cage minimizes friction, allowing you to run machinery efficiently at elevated rotational speeds.
Exact fit and stability: With precise dimensions of 80 x 140 x 26 mm, you achieve rigid shaft guidance across industrial applications.

In a nutshell

The right choise for

With the Skf 7216 becbp single row angular contact ball bearing, you ensure reliable operation in demanding industrial machinery such as pumps, compressors, and gearboxes. Thanks to the 40° contact angle, you easily support combined radial loads and heavy unidirectional axial forces. The lightweight glass-fibre reinforced polyamide cage reduces friction, allowing for smooth and stable performance at high rotational speeds. Featuring exact dimensions of 80 x 140 x 26 mm, this open-type bearing delivers precise and rigid shaft guidance on 80 mm shafts.

Product information FAQ

€269.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 26 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 140 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Width: 26 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 140 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 75
Lubricant: None
Relubrication feature: Without
Reference speed: 5600
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 80
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 5600
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 85
Coating: Without
Outer diameter: 140
Universal matching bearing: Yes

Brand SKF
01050148
EAN 7316576633607
Supplier number SKF 7216 BECBP

Frequently asked questions about this product

Answered by specialists

What types of loads can this angular contact ball bearing support?: This single-row bearing accommodates combined radial and axial loads, with the axial load acting in one direction.
What are the exact dimensions of the SKF 7216 BECBP?: The bearing has an 80 mm bore diameter, a 140 mm outer diameter, and a width of 26 mm.
What is the purpose of the 40° contact angle?: The 40° contact angle provides a high axial load-carrying capacity in one direction.
What material is used for the cage?: This model features a glass-fibre reinforced polyamide (plastic) cage.
Is this bearing equipped with seals?: No, this is an open-type bearing without integrated seals.
