What are the dimensions of this SKF bearing?

The 7210 BEP bearing has an inside diameter of 50 mm, an outside diameter of 90 mm, and a width of 20 mm.

What types of loads can this angular contact ball bearing support?

It is designed for combined loads, accommodating radial and axial forces simultaneously, with the axial load acting in one direction.

What does the BEP designation mean on this bearing?

The B indicates a 40° contact angle, E denotes an optimized internal design, and P indicates a glass fibre reinforced polyamide (PA66) cage.

Is the SKF 7210 BEP bearing sealed or lubricated?

No, this is an open bearing without integrated seals or factory lubricant, allowing you to apply the appropriate grease or oil.

Can this bearing handle axial loads in both directions?

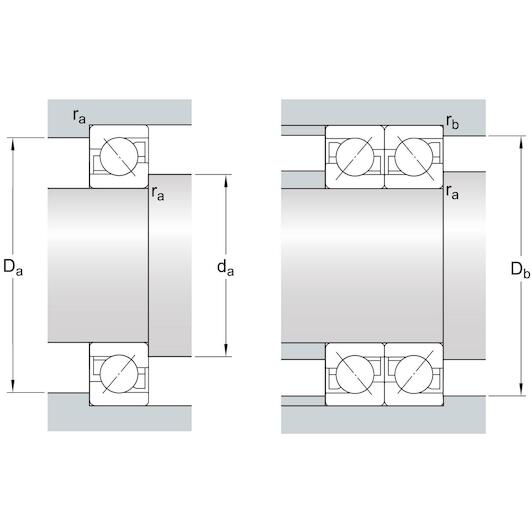

No, a single-row bearing supports axial loads in one direction only. For bidirectional axial loads, bearings must be mounted in pairs.

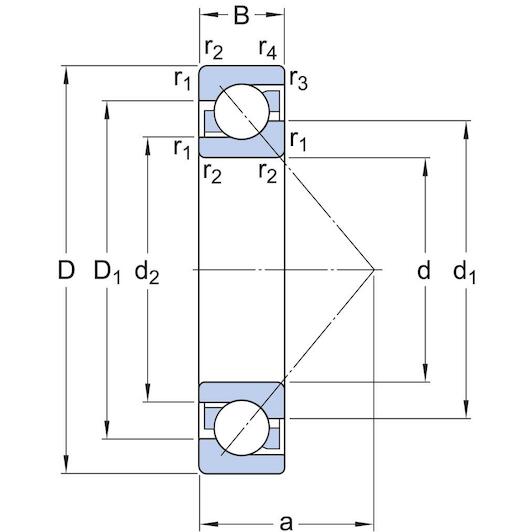

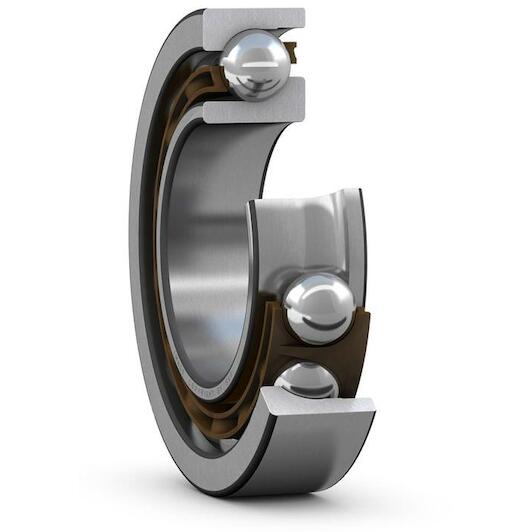

SKF 7210 BEP single-row angular contact ball bearing 50 x 90 x 20 mm with contact angle 40°

Supplier number: SKF 7210 BEP | EAN 7316576633232

Recommended Retail Price €151.53

74.95 tax incl.

€61.94 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 13/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load handling by Skf

Practical benefits

High axial capacity: The 40° contact angle allows you to easily support heavy unilateral axial loads combined with radial forces.
Smooth high speed operation: The lightweight polyamide cage reduces internal friction, letting you achieve high rotational speeds reliably.
Standardized open design: Standard dimensions of 50 x 90 x 20 mm allow you to fit this bearing directly into lubricated housings.

In a nutshell

The right choise for

With the Skf 7210 BEP, you can easily support combined radial loads and heavy unidirectional axial forces in machinery and shaft systems. Featuring a 40° contact angle, this single row angular contact ball bearing provides high thrust capacity and operational rigidity. The lightweight glass fibre reinforced polyamide cage minimizes friction and vibrations, ensuring smooth operation at high rotational speeds. Built to standard dimensions of 50 x 90 x 20 mm with an open design, it integrates smoothly into lubricated setups for pumps, compressors, gearboxes, and electric motors.

Product information FAQ

€74.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 20 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 20 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm
Basic static load rating: 28.5
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 9000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 8500
Bore diameter: 50
Basic dynamic load rating: 37.7
Coating: Without
Outer diameter: 90
Universal matching bearing: No

Brand SKF
01050051
EAN 7316576633232
Supplier number SKF 7210 BEP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The 7210 BEP bearing has an inside diameter of 50 mm, an outside diameter of 90 mm, and a width of 20 mm.
What types of loads can this angular contact ball bearing support?: It is designed for combined loads, accommodating radial and axial forces simultaneously, with the axial load acting in one direction.
What does the BEP designation mean on this bearing?: The B indicates a 40° contact angle, E denotes an optimized internal design, and P indicates a glass fibre reinforced polyamide (PA66) cage.
Is the SKF 7210 BEP bearing sealed or lubricated?: No, this is an open bearing without integrated seals or factory lubricant, allowing you to apply the appropriate grease or oil.
Can this bearing handle axial loads in both directions?: No, a single-row bearing supports axial loads in one direction only. For bidirectional axial loads, bearings must be mounted in pairs.
