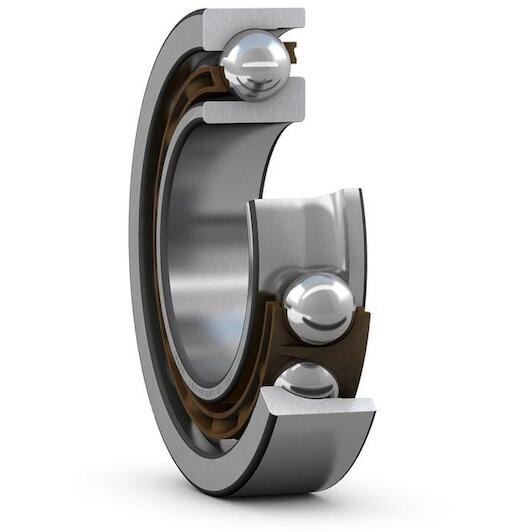

SKF 7206 BEP single-row angular contact ball bearing 30 x 62 x 16 mm with contact angle 40°

Supplier number: SKF 7206 BEP | EAN 7316571410364

Recommended Retail Price €82.67

40.80 tax incl.

€33.72 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High load support from Skf

Practical benefits

Strong axial capacity: The 40° contact angle lets you handle heavy unidirectional axial loads combined with radial forces.
Smooth polyamide cage: The lightweight non-metallic cage minimizes internal friction, allowing you to run smoothly at high speeds.
Standardized precision fit: Exact dimensions of 30 x 62 x 16 mm ensure you achieve straightforward installation in machinery shafts.

In a nutshell

The right choise for

With the Skf 7206 bep single-row angular contact ball bearing, you ensure reliable operation in gearboxes, pumps, and drive systems. Featuring a 40° contact angle, it accommodates heavy unidirectional axial thrust alongside simultaneous radial forces. The lightweight polyamide cage minimizes internal friction and heat generation, allowing smooth rotation at high speeds. With standardized dimensions of 30 x 62 x 16 mm, this open bearing easily fits onto your shaft to deliver rigid and precise guidance.

Product information FAQ

€40.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm
Basic static load rating: 14.3
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 13000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 13000
Bore diameter: 30
Basic dynamic load rating: 22.5
Coating: Without
Outside diameter: 62
Universal matching bearing: No

Brand SKF
01050047
EAN 7316571410364
Supplier number SKF 7206 BEP

Frequently asked questions about this product

Answered by specialists

What types of load can this angular contact ball bearing support?: It is designed for combined loads with simultaneous radial forces and high axial forces in one direction only.
What does the suffix BEP stand for?: B indicates a 40° contact angle, E an optimized internal design, and P a glass fibre reinforced polyamide cage.
Is this SKF bearing sealed?: No, this is an open bearing without seals and requires external lubrication.
Can this bearing accommodate axial loads in both directions?: No, a single-row bearing supports axial load in one direction only. For two directions, bearings must be paired.
What are the dimensions of the SKF 7206 BEP?: It has a 30 mm bore diameter, a 62 mm outside diameter, and a width of 16 mm.
