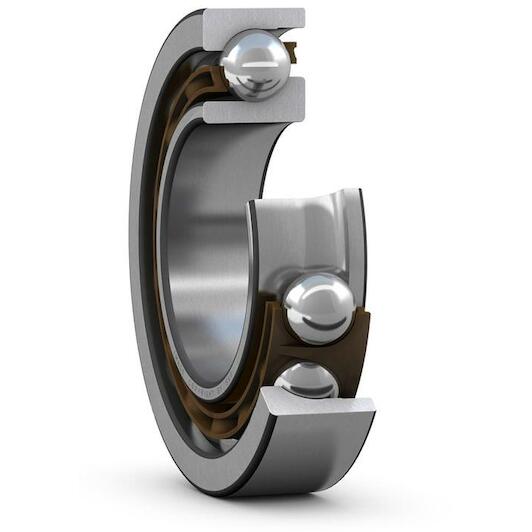

SKF 7205 BEP single-row angular contact ball bearing 25 x 52 x 15 mm with contact angle 40°

Supplier number: SKF 7205 BEP | EAN 7316576632686

Recommended Retail Price €69.10

34.20 tax incl.

€28.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High stability using 7205 BEP

Practical benefits

Superior axial thrust handling: The 40° contact angle lets you handle heavy single-direction thrust forces paired seamlessly with simultaneous radial loads.
Smooth high speed operation: A lightweight polymer cage decreases friction so you achieve quieter, energy-efficient rotation even under demanding rapid rotation cycles.
Accurate compact installation: Standard dimensions of 25 x 52 x 15 mm ensure you install this single-row component into machine assemblies with minimal effort.

In a nutshell

The right choise for

With the Skf 7205 BEP, you gain dependable stability under combined radial and heavy unidirectional axial loads. Thanks to its 40° contact angle, this single-row angular contact ball bearing easily handles high thrust loads while preventing shaft deflection. The lightweight glass-fibre reinforced polyamide cage minimizes friction and heat build-up at high speeds, keeping your centrifugal pumps, gearboxes, and machine tool spindles running smoothly, quietly, and efficiently. Standard dimensions of 25 x 52 x 15 mm ensure an accurate, straightforward fit into compact housings, delivering durable rotational performance across demanding maintenance and assembly jobs.

Product information FAQ

€34.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 15 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 52 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 15 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 52 mm
Basic static load rating: 9.3
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 16000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 15000
Bore diameter: 25
Basic dynamic load rating: 14.8
Coating: Without
Outside diameter: 52
Universal matching bearing: No

Brand SKF
01050046
EAN 7316576632686
Supplier number SKF 7205 BEP

Frequently asked questions about this product

Answered by specialists

What loads can this angular contact ball bearing accommodate?: It accommodates combined radial loads and axial loads acting in one direction only. The 40° contact angle provides high axial load carrying capacity.
What are the exact dimensions of the SKF 7205 BEP?: The bore diameter is 25 mm, the outside diameter is 52 mm, and the width is 15 mm.
What does the suffix BEP stand for on SKF bearings?: BE denotes a 40° contact angle with optimized internal design, and P indicates a glass-fibre reinforced polyamide cage.
Does this bearing come with seals?: No, this is an open bearing without seals and without pre-lubrication.
Can this bearing support axial loads in both directions?: No, as a single row angular contact ball bearing, it supports axial loads in one direction only. A second opposing bearing is required for two directions.
