SKF

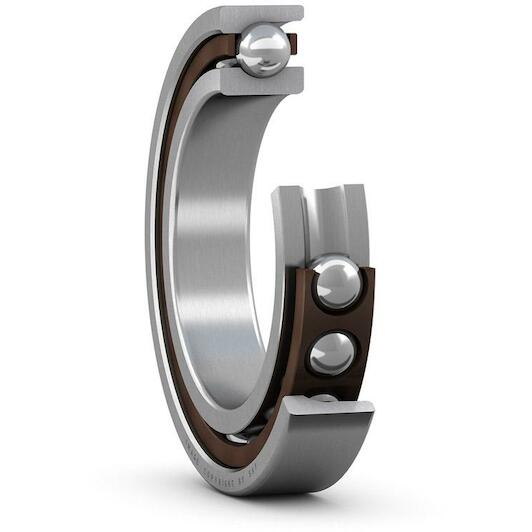

SKF 7205 ACD/P4A single-row super-precision angular contact ball bearing 25 x 52 x 15 mm with contact angle 25°

Recommended Retail Price €632.24
312.95 tax incl.
€258.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These super-precision, high-capacity, single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

  • Very high running accuracy
  • Very high load carrying capacity
  • Relatively high speed and stiffness
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 15 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570261714
  • Supplier number: SKF 7205 ACD/P4A
Inner diameter
25 mm
Width
15 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Outer diameter
52 mm
Basic static load rating
6.95
Ring type
One-piece inner and outer rings
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Design
High-capacity D
Matched arrangement
No
Lubricant
None
Attainable speed for oil-air lubrication
40000
Cage
Non-metallic
Material, bearing
Bearing steel
Attainable speed for grease lubrication
26000
Sealing
Without
Bore diameter
25
Contact angle
25
Matched condition (axial clearance/ preload)
Not applicable
Basic dynamic load rating
13
Coating
Without
Outside diameter
52
Universal matching bearing
No
