What are the dimensions of this angular contact ball bearing?

The bearing has a 20 mm bore diameter, a 47 mm outer diameter, and a 14 mm width.

What types of loads can this bearing accommodate?

It is designed for combined loads, handling radial and axial forces acting simultaneously in one direction.

What is the purpose of the 40° contact angle?

The 40° contact angle provides higher axial load-carrying capacity in a single direction.

What material is used for the cage?

The 7204 BECBP features a non-metallic cage made of polymer (reinforced polyamide).

Does this SKF bearing include built-in seals?

No, this is an open bearing configuration supplied without seals.

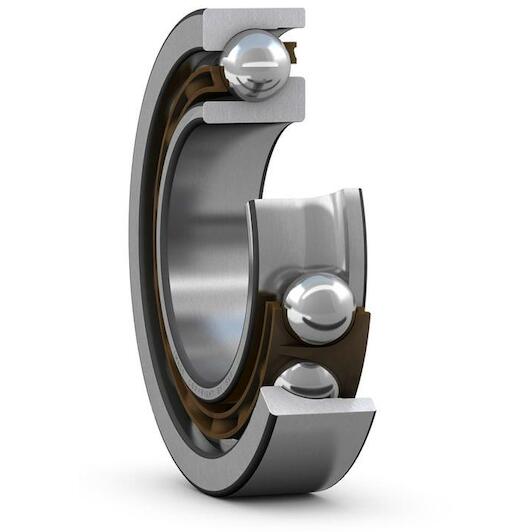

SKF 7204 BECBP single-row angular contact ball bearing 20 x 47 x 14 mm with contact angle 40°

Supplier number: SKF 7204 BECBP | EAN 7316576649752

Recommended Retail Price €123.27

60.95 tax incl.

€50.37 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 14/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable motion with Skf

Practical benefits

High axial load support: Featuring a 40° contact angle, you reliably accommodate simultaneous radial forces and heavy unidirectional axial loads.
Smooth high speed operation: The lightweight polymer cage minimizes internal friction so you maintain efficient running performance at high rotational speeds.
Standardized dimensional fit: With dimensions of 20 x 47 x 14 mm, you integrate this open bearing seamlessly into your industrial assemblies.

In a nutshell

The right choise for

With the Skf 7204 becbp single row angular contact ball bearing, you ensure dependable performance in high-speed industrial machinery. Featuring a 40° contact angle, it reliably supports combined radial forces and heavy unidirectional axial thrust loads. The lightweight polymer cage reduces internal friction and vibrations, maintaining smooth and quiet operation at high rotational speeds. Measuring 20 x 47 x 14 mm, this open bearing is an ideal solution for pumps, compressors, gearboxes, and electric motors. Whether you are performing maintenance or building machinery, it delivers precise shaft guidance and long-lasting operational reliability.

Product information FAQ

€60.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 14 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 47 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 14 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 47 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 8.15
Lubricant: None
Relubrication feature: Without
Reference speed: 19000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 20
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 19000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 14.3
Coating: Without
Outer diameter: 47
Universal matching bearing: Yes

Brand SKF
01050424
EAN 7316576649752
Supplier number SKF 7204 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bearing has a 20 mm bore diameter, a 47 mm outer diameter, and a 14 mm width.
What types of loads can this bearing accommodate?: It is designed for combined loads, handling radial and axial forces acting simultaneously in one direction.
What is the purpose of the 40° contact angle?: The 40° contact angle provides higher axial load-carrying capacity in a single direction.
What material is used for the cage?: The 7204 BECBP features a non-metallic cage made of polymer (reinforced polyamide).
Does this SKF bearing include built-in seals?: No, this is an open bearing configuration supplied without seals.
