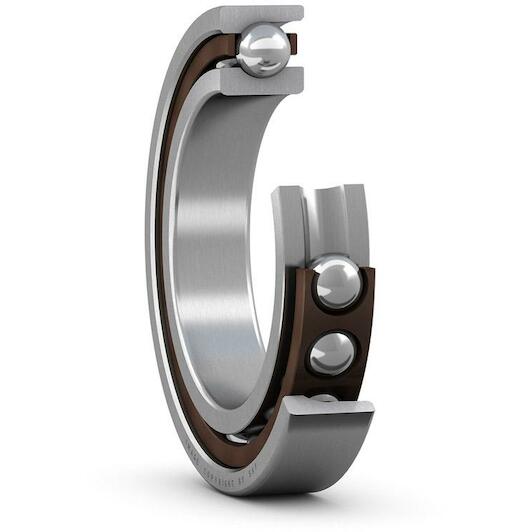

SKF 7201 CD/P4ADGA single-row super-precision angular contact ball bearing 12 x 32 x 20 mm with contact angle 15°

Recommended Retail Price €1,245.50

616.60 tax incl.

€509.59 excl. VAT (incl. all environmental contributions)

SKF 7201 CD/P4ADGA single-row super-precision angular contact ball bearing 12 x 32 x 20 mm with contact angle 15°

€616.60 Recommended Retail Price €1,245.50

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information
Additional info

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 12 mm
Width: 20 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 32 mm

Specifications / All features

Brand: SKF
01051424
EAN: 07316576626593
Supplier number: SKF 7201 CD/P4ADGA

Inner diameter: 12 mm
Width: 20 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 32 mm
Basic static load rating: 5.1
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Design: High-capacity D
Matched arrangement: Universal matching
Lubricant: None
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel

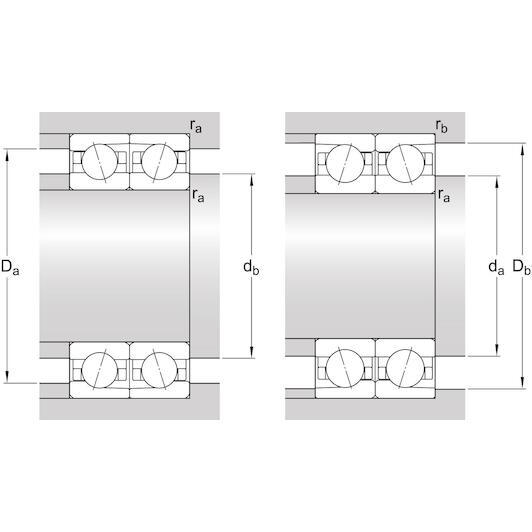

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Bore diameter: 12
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Basic dynamic load rating: 9.56
Coating: Without
Outside diameter: 32
Note: Refer to catalogue data or contact SKF for the attainable speeds
