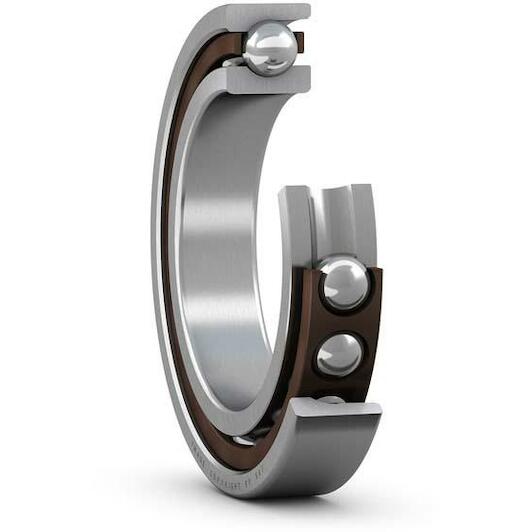

SKF 71936 CDGA/P4A single-row angular contact ball bearing high capacity, universally combinable 180 mm

Supplier number: SKF 71936 CDGA/P4A | EAN 7316570876659

Recommended Retail Price €5,410.99

2,678.80 tax incl.

€2,213.88 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

Ordered before 20:00 - delivered as of 21/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Product information

€2,678.80

tax incl.

Key features according to our expert

Inner diameter: 180 mm
Width: 33 mm
Number of rows: 1
Sealing (bearing): Without seals
Outer diameter: 250 mm

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

All Features

Inner diameter: 180 mm
Width: 33 mm
Number of rows: 1
Sealing (bearing): Without seals
Outer diameter: 250 mm
Sealing: Without
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: No
Basic static load rating: 212
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Ring type: One-piece inner and outer rings
Bore diameter: 180
Contact angle: 15
Matched condition (axial clearance/ preload): Measuring load, class A
Basic dynamic load rating: 168
Coating: Without
Outer diameter: 250
Note: Refer to catalogue data or contact SKF for the attainable speeds
