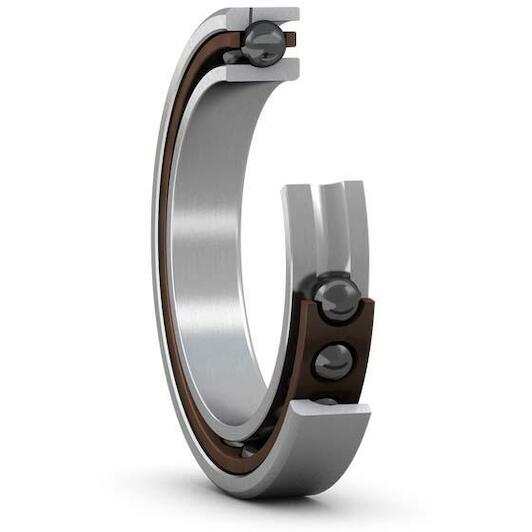

SKF 71914 CEGA/HCP4AH1 Single-row angular contact ball bearing oil-air lubrication high-speed E-design universal pairing

Recommended Retail Price €1,780.35

881.40 tax incl.

€728.43 excl. VAT (incl. all environmental contributions)

SKF 71914 CEGA/HCP4AH1 Single-row angular contact ball bearing oil-air lubrication high-speed E-design universal pairing

€881.40 Recommended Retail Price €1,780.35

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes in their outer rings.

Suitable for direct oil-air lubrication
Very high running accuracy
Accommodate very high speeds
Universally matchable

Key features according to our expert

Inner diameter: 70 mm
Width: 16 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 100 mm

Specifications / All features

Brand: SKF
08125794
EAN: 07316580032601
Supplier number: SKF 71914 CEGA/HCP4AH1

Inner diameter: 70 mm
Width: 16 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 100 mm
Basic static load rating: 16
Ring type: One-piece inner and outer rings
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: No
Lubricant: None
Design: High-speed E
Contact angle: 15
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Sealing: Without
Special feature: Suitable for direct oil-air lubrication
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 70
Basic dynamic load rating: 22.1
Coating: Without
Outside diameter: 100
Note: Refer to catalogue data or contact SKF for the attainable speeds
