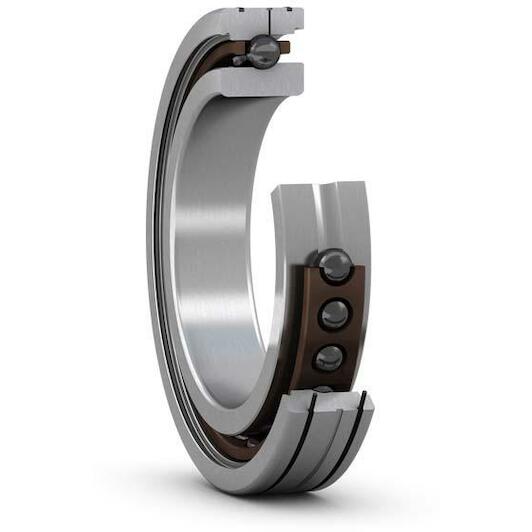

SKF 71908 ACBGA/HCP4AL Single-row angular contact ball bearing oil-air lubrication high-speed B-design universal pairing

Recommended Retail Price €1,017.40

503.60 tax incl.

€416.20 excl. VAT (incl. all environmental contributions)

SKF 71908 ACBGA/HCP4AL Single-row angular contact ball bearing oil-air lubrication high-speed B-design universal pairing

€503.60 Recommended Retail Price €1,017.40

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These super-precision, high-speed, single row angular contact ball bearings with 15° or 25° contact angle accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes, an annular groove, and two annular O-ring grooves in their outer rings.

Suitable for direct oil-air lubrication
Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Universally matchable

Key features according to our expert

Inner diameter: 40 mm
Width: 12 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm

Specifications / All features

Brand: SKF
08125774
EAN: 07316575089979
Supplier number: SKF 71908 ACBGA/HCP4AL

Inner diameter: 40 mm
Width: 12 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm
Basic static load rating: 3.9
Ring type: One-piece inner and outer rings
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: No
Lubricant: None
Design: High-speed B
Contact angle: 25
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Sealing: Without
Special feature: Suitable for direct oil-air lubrication
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 40
Basic dynamic load rating: 5.07
Coating: Without
Outside diameter: 62
Note: Refer to catalogue data or contact SKF for the attainable speeds
