SKF 71830 CD/P4DGB Single-row angular contact ball bearing set D-design high load capacity pairable 150 mm 2-piece

Recommended Retail Price €8,382.24

4,149.95 tax incl.

€3,429.71 excl. VAT (incl. all environmental contributions)

SKF 71830 CD/P4DGB Single-row angular contact ball bearing set D-design high load capacity pairable 150 mm 2-piece

€4,149.95 Recommended Retail Price €8,382.24

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

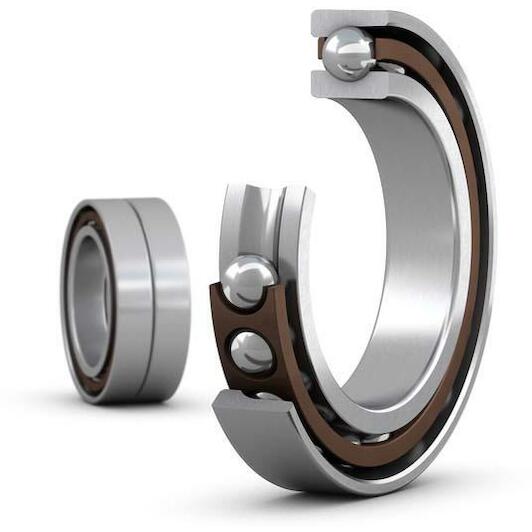

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 150 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 190 mm

Specifications / All features

Brand: SKF
08124555
EAN: 07316574452729
Supplier number: SKF 71830 CD/P4DGB

Inner diameter: 150 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 190 mm
Basic static load rating: 146
Number of bearings in matched set: 2
Tolerance class: P4
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Light preload
Bore diameter: 150
Basic dynamic load rating: 83.2
Coating: Without
Outside diameter: 190
Note: Refer to catalogue data or contact SKF for the attainable speeds
