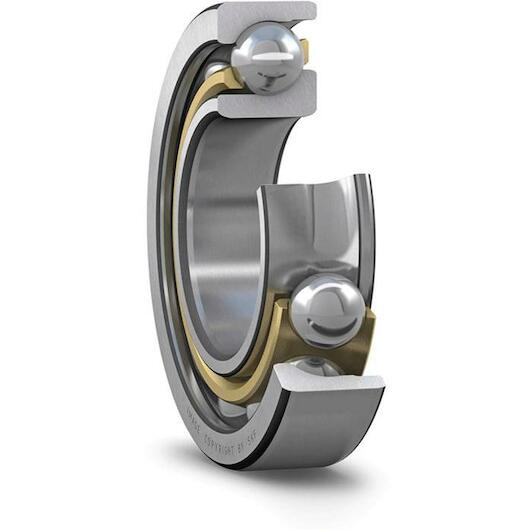

SKF 7028 BGM single-row angular contact ball bearing 140 x 210 x 33 mm with contact angle 40°

Supplier number: SKF 7028 BGM | EAN 7316577079534
Recommended Retail Price €3,423.42
1,694.80 tax incl.
€1,400.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/10/2026

  • Ordered before 20:00 - delivered as of 27/10/2026
  • Free shipping
  • Delivery by DHL


€1,694.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 140 mm
  • Width: 33 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 210 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Documents

All Features

Inner diameter
140 mm
Width
33 mm
Number of rows
1
Axial clearance
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
210 mm
Basic static load rating
129
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
3400
Sealing
Without
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
3400
Bore diameter
140
Basic dynamic load rating
114
Coating
Without
Outer diameter
210
Universal matching bearing
Yes
  • Brand SKF
  • EAN 7316577079534
  • Supplier number SKF 7028 BGM
