SKF 7020 ACD/P4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable 100 mm 2-piece

Recommended Retail Price €3,971.61

1,966.20 tax incl.

€1,624.96 excl. VAT (incl. all environmental contributions)

SKF 7020 ACD/P4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable 100 mm 2-piece

€1,966.20 Recommended Retail Price €3,971.61

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

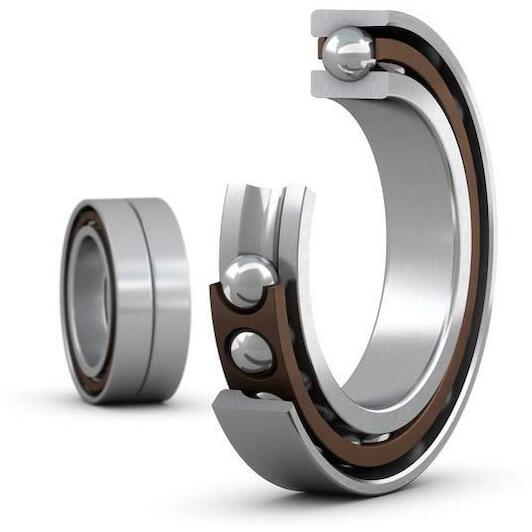

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 100 mm
Width: 24 mm
Outer diameter: 150 mm

Specifications / All features

Brand: SKF
02103888
EAN: 07316576625794
Supplier number: SKF 7020 ACD/P4ADGA

Inner diameter: 100 mm
Width: 24 mm
Outer diameter: 150 mm
Sealing: Without

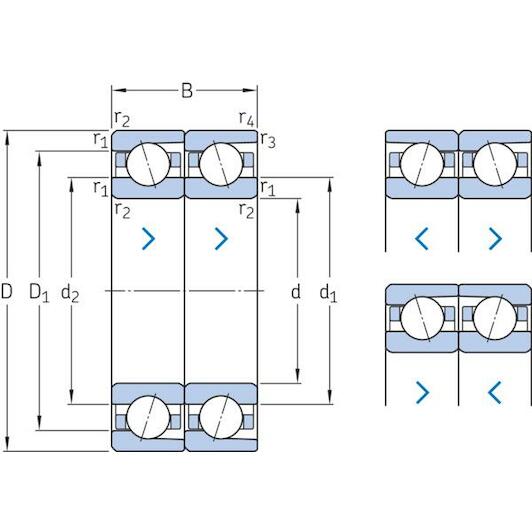

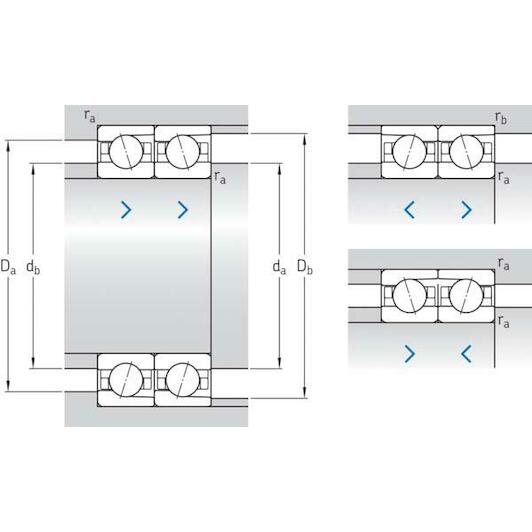

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: Universal matching
Basic static load rating: 160
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Number of bearings in matched set: 2
Ring type: One-piece inner and outer rings
Matched condition (axial clearance/ preload): Extra light preload
Contact angle: 25
Bore diameter: 100
Number of rows: 2
Basic dynamic load rating: 127
Coating: Without
Outside diameter: 150
Note: Refer to catalogue data or contact SKF for the attainable speeds
