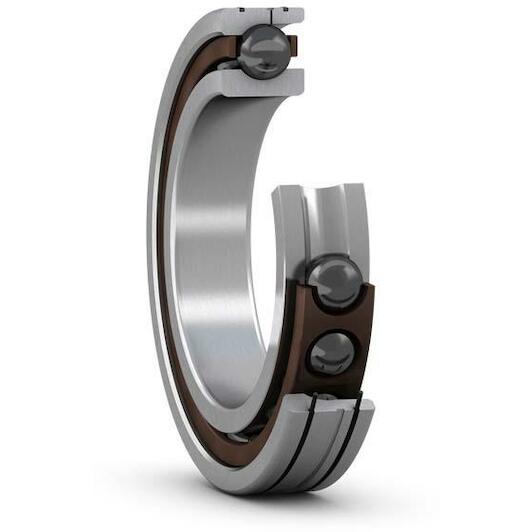

SKF 7017 ACDGA/HCP4AL single-row angular contact ball bearing oil-air lubrication high load capacity universal pairing

Recommended Retail Price €3,794.52

1,878.60 tax incl.

€1,552.56 excl. VAT (incl. all environmental contributions)

SKF 7017 ACDGA/HCP4AL single-row angular contact ball bearing oil-air lubrication high load capacity universal pairing

€1,878.60 Recommended Retail Price €3,794.52

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes, an annular groove, and two annular O-ring grooves in their outer rings.

Suitable for direct oil-air lubrication
Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Key features according to our expert

Inner diameter: 85 mm
Width: 22 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 130 mm

Specifications / All features

Brand: SKF
08125810
EAN: 07316575949686
Supplier number: SKF 7017 ACDGA/HCP4AL

Inner diameter: 85 mm
Width: 22 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 130 mm
Basic static load rating: 62
Ring type: One-piece inner and outer rings
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: No
Lubricant: None
Design: High-capacity D
Contact angle: 25
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Sealing: Without
Special feature: Suitable for direct oil-air lubrication
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 85
Basic dynamic load rating: 63.7
Coating: Without
Outside diameter: 130
Note: Refer to catalogue data or contact SKF for the attainable speeds
