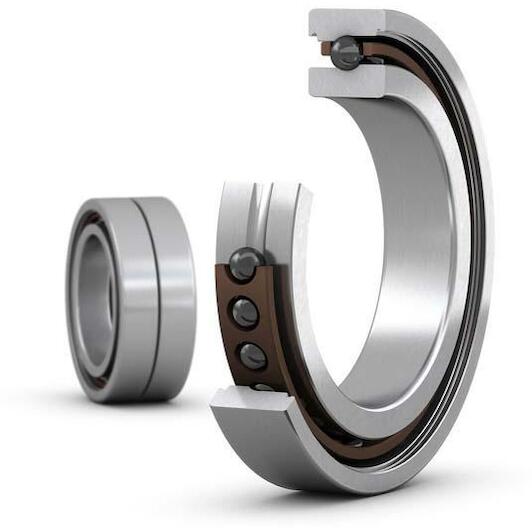

SKF 7014 ACB/HCP4ADGA matched set of two , high-speed B-design, single-row angular contact ball bearings 70 mm

Recommended Retail Price €3,438.37

1,702.20 tax incl.

€1,406.78 excl. VAT (incl. all environmental contributions)

SKF 7014 ACB/HCP4ADGA matched set of two , high-speed B-design, single-row angular contact ball bearings 70 mm

€1,702.20 Recommended Retail Price €3,438.37

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.

Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces

Key features according to our expert

Inner diameter: 70 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 110 mm

Specifications / All features

Brand: SKF
08124041
EAN: 07316575144142
Supplier number: SKF 7014 ACB/HCP4ADGA

Inner diameter: 70 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 110 mm
Basic static load rating: 31
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-speed B
Sealing: Without
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 70
Basic dynamic load rating: 29.6
Coating: Without
Outside diameter: 110
Note: Refer to catalogue data or contact SKF for the attainable speeds
