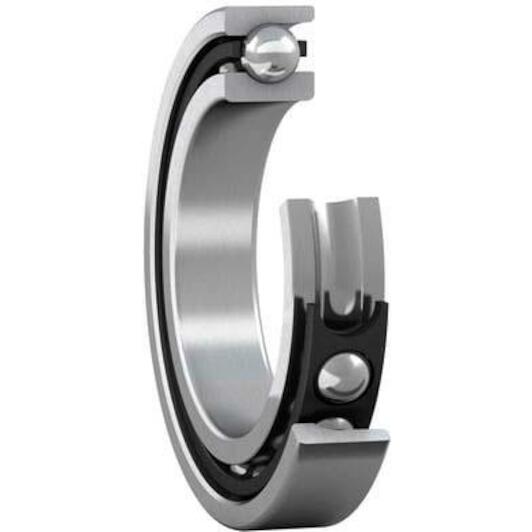

SKF 7012 ACDGATP/P4B single-row angular contact ball bearing high capacity, universally combinable

Recommended Retail Price €932.03

461.40 tax incl.

€381.32 excl. VAT (incl. all environmental contributions)

SKF 7012 ACDGATP/P4B single-row angular contact ball bearing high capacity, universally combinable

€461.40 Recommended Retail Price €932.03

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Key features according to our expert

Inner diameter: 60 mm
Width: 18 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 95 mm

Specifications / All features

Brand: SKF
08126357
EAN: 07316579261456
Supplier number: SKF 7012 ACDGATP/P4B

Inner diameter: 60 mm
Width: 18 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 95 mm
Matched arrangement: No
Tolerance class: P4B
Contact type: Normal contact (two-point contact)
Basic static load rating: 33.5
Material, bearing: Bearing steel
Lubricant: None
Design: High-capacity D
Cage: Non-metallic
Sealing: Without
Attainable speed for grease lubrication: 13000
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 60
Basic dynamic load rating: 39
Coating: Without
Outside diameter: 95
Note: Refer to catalogue data or contact SKF for the attainable speeds
