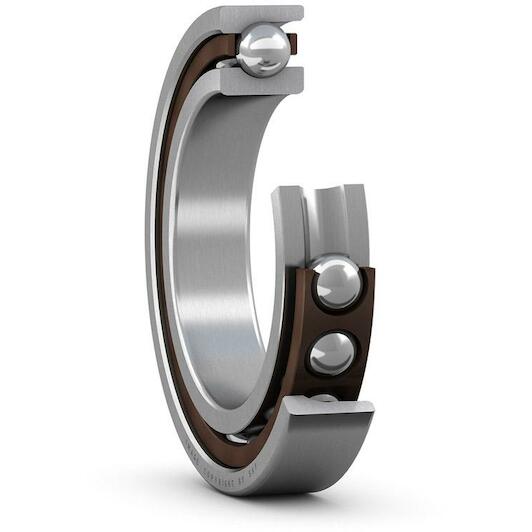

SKF 7010 CD/P4ADGA single-row super-precision angular contact ball bearing 50 x 80 x 32 mm with contact angle 15°

Recommended Retail Price €1,423.50

704.60 tax incl.

€582.31 excl. VAT (incl. all environmental contributions)

SKF 7010 CD/P4ADGA single-row super-precision angular contact ball bearing 50 x 80 x 32 mm with contact angle 15°

€704.60 Recommended Retail Price €1,423.50

On order: delivered from 28/05/2026

pair

Ordered before 20:00 - delivered as of 28/05/2026
Free shipping
Delivery by DHL

Product information
Additional info

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 50 mm
Width: 32 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 80 mm

Specifications / All features

Brand: SKF
01051272
EAN: 7316576625190
Supplier number: SKF 7010 CD/P4ADGA

Inner diameter: 50 mm
Width: 32 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 80 mm
Basic static load rating: 48
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Design: High-capacity D
Matched arrangement: Universal matching
Lubricant: None
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel

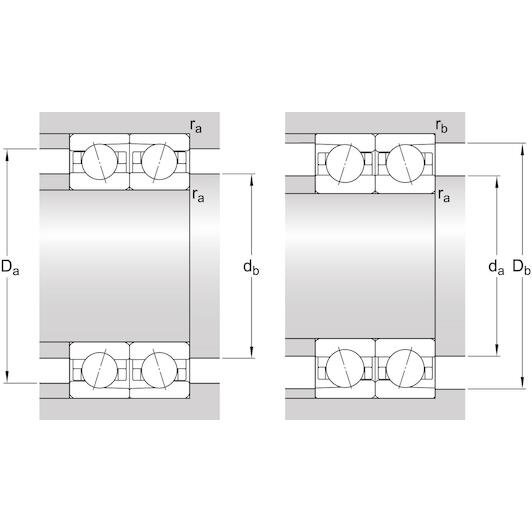

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Bore diameter: 50
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Basic dynamic load rating: 48.8
Coating: Without
Outside diameter: 80
Note: Refer to catalogue data or contact SKF for the attainable speeds
