SKF

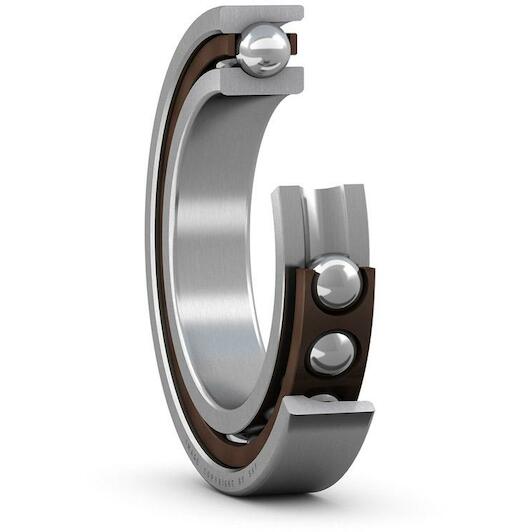

SKF 7006 CD/P4A single-row super-precision angular contact ball bearing 30 x 55 x 13 mm with contact angle 15°

Recommended Retail Price €434.77
215.20 tax incl.
€177.85 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These super-precision, high-capacity, single row angular contact ball bearings, with 15° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

  • Very high running accuracy
  • Very high load carrying capacity
  • Relatively high speed and stiffness
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 13 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Outer diameter: 55 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571150284
  • Supplier number: SKF 7006 CD/P4A
Inner diameter
30 mm
Width
13 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Outer diameter
55 mm
Basic static load rating
8
Ring type
One-piece inner and outer rings
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Design
High-capacity D
Matched arrangement
No
Lubricant
None
Attainable speed for oil-air lubrication
48000
Cage
Non-metallic
Material, bearing
Bearing steel
Attainable speed for grease lubrication
32000
Sealing
Without
Bore diameter
30
Contact angle
15
Matched condition (axial clearance/ preload)
Not applicable
Basic dynamic load rating
14.3
Coating
Without
Outside diameter
55
Universal matching bearing
No
