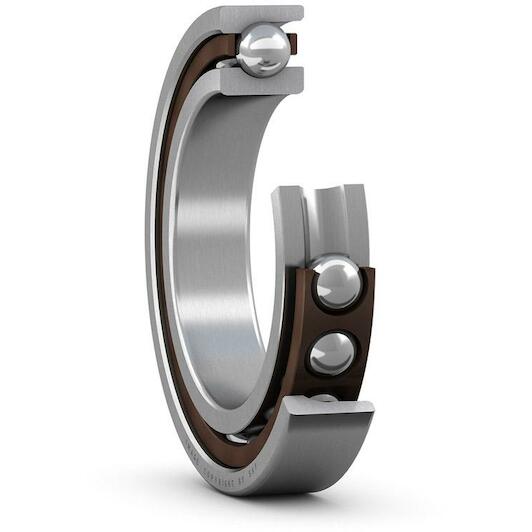

SKF 7004 CD/P4ADGA single-row super-precision angular contact ball bearing 20 x 42 x 24 mm with contact angle 15°

Supplier number: SKF 7004 CD/P4ADGA | EAN 7316576624834

Recommended Retail Price €882.59

436.80 tax incl.

€360.99 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

pair

Ordered before 20:00 - delivered as of 24/09/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High-speed precision with Skf 7004 CD/P4ADGA

Practical benefits

Superior running accuracy: The P4A tolerance rating ensures you maintain exceptional stability and concentricity in demanding spindle assemblies.
High combined load capacity: Featuring a 15° contact angle, the D-design helps you reliably accommodate simultaneous radial and axial forces.
Flexible matched pairing: You can easily mount this universally matched pair back-to-back, face-to-face, or in tandem configurations.

In a nutshell

The right choise for

With the Skf 7004 CD/P4ADGA, you achieve maximum rotational accuracy and stability in demanding spindle assemblies. This matched set of two super-precision single row angular contact ball bearings reliably handles simultaneous radial and high-speed axial loads. Featuring a P4A tolerance rating, a high-capacity D-design, and a 15° contact angle, it eliminates shaft play with a predefined light preload while minimizing friction and runout. Sized at 20 x 42 x 24 mm, this open, unlubricated bearing pair mounts universally in back-to-back, face-to-face, or tandem configurations to meet your exact machinery needs.

Product information FAQ

€436.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 24 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Outer diameter: 42 mm

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 24 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Outer diameter: 42 mm
Basic static load rating: 8.5
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Design: High-capacity D
Matched arrangement: Universal matching
Lubricant: None
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel

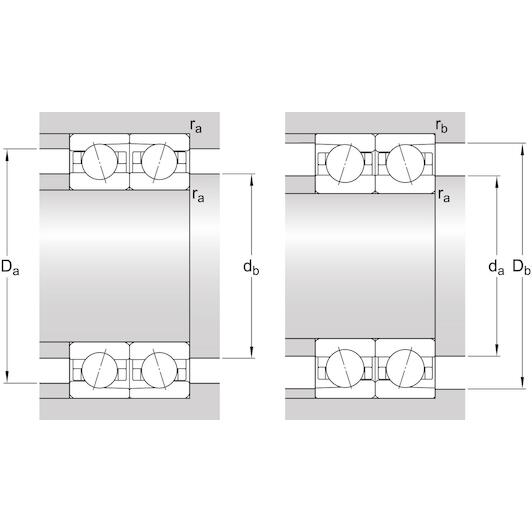

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Bore diameter: 20
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Basic dynamic load rating: 14
Coating: Without
Outside diameter: 42
Note: Refer to catalogue data or contact SKF for the attainable speeds

Brand SKF
01051250
EAN 7316576624834
Supplier number SKF 7004 CD/P4ADGA

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing set?: The set has a 20 mm bore diameter, a 42 mm outside diameter, and a total width of 24 mm.
How many bearings are included in the SKF 7004 CD/P4ADGA?: This matched set consists of two universally matchable super-precision angular contact ball bearings.
What is the contact angle of this bearing?: The bearing has a 15° contact angle (indicated by CD) for high rigidity and load-carrying capacity.
In which arrangements can these bearings be mounted?: Thanks to universal matching, you can mount the set in back-to-back, face-to-face, or tandem arrangements.
Does this bearing set have seals or pre-lubrication?: No, it is an open bearing set without seals and without grease, allowing you to use your specific lubricant.
