SKF 7003 CE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 17 mm 2-piece

Recommended Retail Price €1,542.65

763.60 tax incl.

€631.07 excl. VAT (incl. all environmental contributions)

SKF 7003 CE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 17 mm 2-piece

€763.60 Recommended Retail Price €1,542.65

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

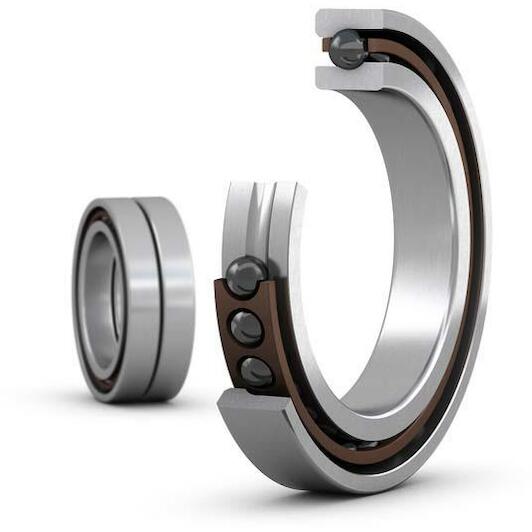

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.

Very high running accuracy
Accommodate very high speeds

Key features according to our expert

Inner diameter: 17 mm
Width: 20 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 35 mm

Specifications / All features

Brand: SKF
08123969
EAN: 07316575979614
Supplier number: SKF 7003 CE/HCP4ADGA

Inner diameter: 17 mm
Width: 20 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 35 mm
Basic static load rating: 5.1
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-speed E
Sealing: Without
Material, bearing: Hybrid (ceramic balls)

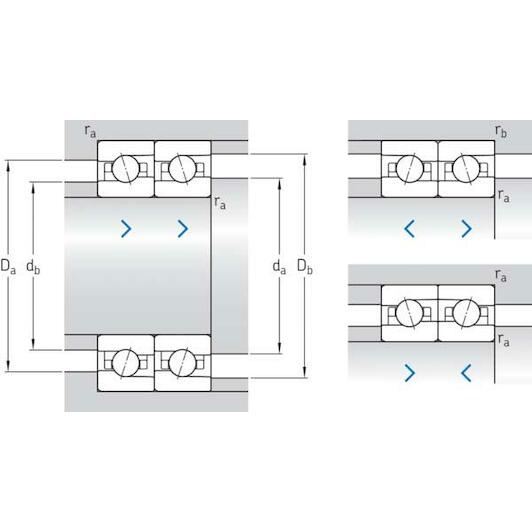

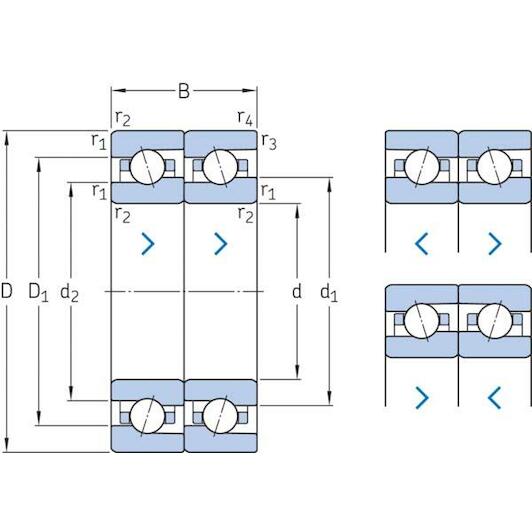

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 17
Basic dynamic load rating: 9.56
Coating: Without
Outside diameter: 35
Note: Refer to catalogue data or contact SKF for the attainable speeds
