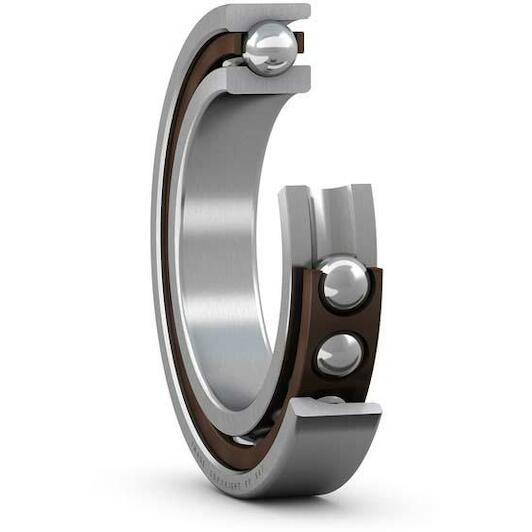

SKF 7000 ACDGA/P4A single-row angular contact ball bearing high capacity, universally combinable 10 mm

Recommended Retail Price €406.09

200.95 tax incl.

€166.07 excl. VAT (incl. all environmental contributions)

SKF 7000 ACDGA/P4A single-row angular contact ball bearing high capacity, universally combinable 10 mm

€200.95 Recommended Retail Price €406.09

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Key features according to our expert

Inner diameter: 10 mm
Width: 8 mm
Number of rows: 1
Seal (bearing): Without seal
Outer diameter: 26 mm

Specifications / All features

Brand: SKF
03180565
EAN: 7316570134421
Supplier number: SKF 7000 ACDGA/P4A

Inner diameter: 10 mm
Width: 8 mm
Number of rows: 1
Seal (bearing): Without seal
Outer diameter: 26 mm
Sealing: Without
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: No
Basic static load rating: 1.6
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Ring type: One-piece inner and outer rings
Bore diameter: 10
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Basic dynamic load rating: 3.97
Coating: Without
Outside diameter: 26
Note: Refer to catalogue data or contact SKF for the attainable speeds
