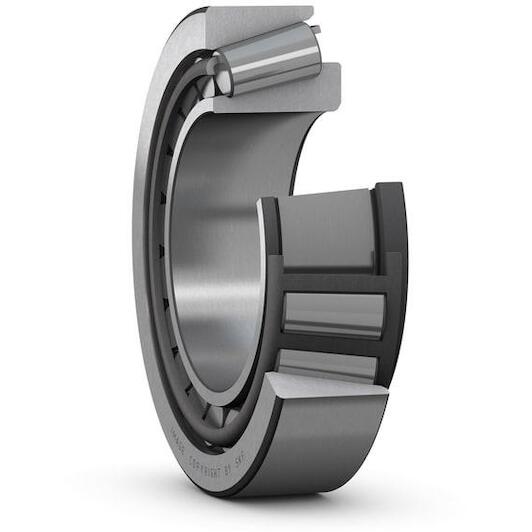

SKF 683/672/Q Single-row tapered roller bearing 95.25 mm

Recommended Retail Price €575.68
284.95 tax incl.
€235.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 95,25 mm
  • Width: 41,275 mm
  • Number of rows: 1
  • Outer diameter: 168,275 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573301110
  • Supplier number: SKF 683/672/Q
Inner diameter
95,25 mm
Width
41,275 mm
Number of rows
1
Outer diameter
168,275 mm
Width, total
41.275 mm
Cage
Sheet metal
Width, outer ring
30.162 mm
Lubricant
None
Reference speed
2,800 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
365.00000018693 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Contact angle
17.41666666671 °
Width, inner ring
41.275 mm
Limiting speed
3,800 r/min
Bore diameter
95.25 mm
Basic dynamic load rating
233.00000011933 kN
Coating
Without
Outside diameter
168.275 mm
Bore type
Cylindrical
