What are the dimensions of this SKF ball bearing?

The bearing has an inside diameter of 45 mm, an outside diameter of 120 mm, and a width of 29 mm.

What does the C3 designation indicate?

The C3 clearance class means the bearing has a larger radial internal clearance than normal, suitable for higher thermal expansion or high speeds.

Is this deep groove ball bearing sealed?

No, this is an open bearing without seals, intended for external lubrication with oil or grease.

What loads can this bearing accommodate?

This single row deep groove ball bearing accommodates heavy radial loads and axial loads in both directions.

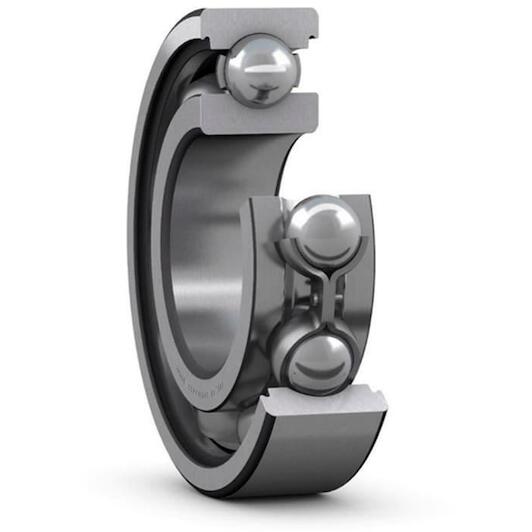

SKF 6409/C3 single-row groove ball bearing cylindrical 45x120x29 mm

Supplier number: SKF 6409/C3 | EAN 7316576621161

Recommended Retail Price €286.58

141.80 tax incl.

€117.19 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf engineering

Practical benefits

Optimized for higher speeds: The C3 internal clearance ensures you avoid thermal binding when operational temperatures rise in continuous use.
Handles combined operational loads: Deep uninterrupted raceways allow you to absorb both radial and axial forces across bidirectional applications.
Smooth low friction rotation: Built from durable bearing steel, it minimizes vibrations so you achieve efficient operation with low maintenance.

In a nutshell

The right choise for

Keep your industrial machinery running smoothly with the Skf 6409/C3 single row deep groove ball bearing. Designed with increased C3 internal radial clearance, it reliably accommodates thermal shaft expansion during continuous high-speed operation, preventing jamming and excessive friction. Its deep uninterrupted raceways efficiently absorb both heavy radial and bidirectional axial loads. Featuring dimensions of 45X120X29 mm, durable bearing steel construction, and an open design suitable for external oil or grease lubrication, this bearing minimizes vibration and wear across electric motors, gearboxes, and drivetrain mechanisms.

Product information FAQ

€141.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 29 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 120 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 29 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 120 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: C3
Basic static load rating: 45
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 13000
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 8500
Bore diameter: 45
Basic dynamic load rating: 76.1
Outer diameter: 120

Brand SKF
01010742
EAN 7316576621161
Supplier number SKF 6409/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has an inside diameter of 45 mm, an outside diameter of 120 mm, and a width of 29 mm.
What does the C3 designation indicate?: The C3 clearance class means the bearing has a larger radial internal clearance than normal, suitable for higher thermal expansion or high speeds.
Is this deep groove ball bearing sealed?: No, this is an open bearing without seals, intended for external lubrication with oil or grease.
What loads can this bearing accommodate?: This single row deep groove ball bearing accommodates heavy radial loads and axial loads in both directions.
