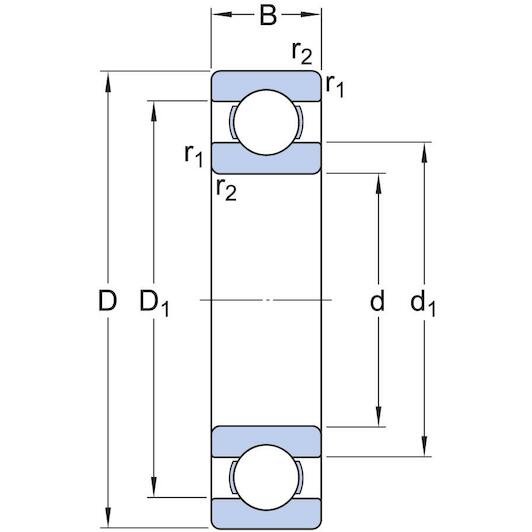

SKF 6336 M/C3 single-row groove ball bearing cylindrical 180x380x75 mm

Recommended Retail Price €7,974.59
3,948.20 tax incl.
€3,262.98 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 180 mm
  • Width: 75 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 380 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577730022
  • Supplier number: SKF 6336 M/C3
Inner diameter
180 mm
Width
75 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
380 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
405
Relubrication feature
Without
Reference speed
3600
Lubricant
None
Cage
Machined metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
3200
Bore diameter
180
Basic dynamic load rating
351
Outside diameter
380
Candidate for remanufacturing
Yes
