What are the dimensions of this deep groove ball bearing?

The bearing has an inside diameter of 120 mm, an outside diameter of 260 mm, and a width of 55 mm.

What does the C3 designation mean for this bearing?

C3 indicates greater radial internal clearance than standard, which is suited for high speeds or thermal expansion.

Is this SKF ball bearing sealed?

No, this is an open bearing without built-in seals.

What loads can this bearing accommodate?

This single-row deep groove ball bearing accommodates radial and axial loads in both directions.

What type of bore does the SKF 6324/C3 have?

This bearing has a standard cylindrical bore for mounting directly on a straight shaft.

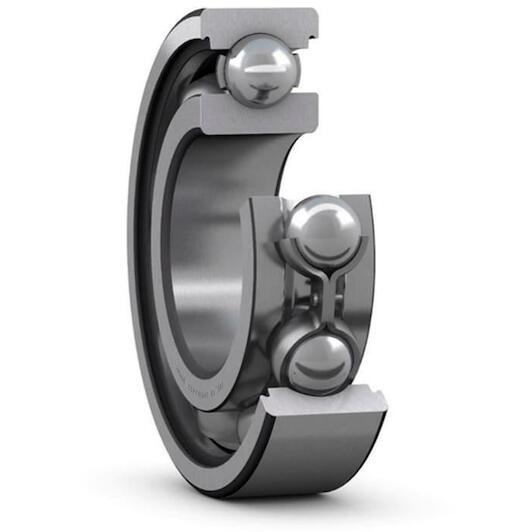

SKF 6324/C3 single-row groove ball bearing cylindrical 120x260x55 mm

Supplier number: SKF 6324/C3 | EAN 7316576625763

Recommended Retail Price €1,805.79

893.95 tax incl.

€738.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 20/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth heavy-duty rotation with Skf

Practical benefits

High rotational speed performance: Low frictional resistance ensures you achieve smooth, low-vibration operation at demanding rotational speeds.
Thermal expansion clearance accommodation: The increased C3 internal clearance ensures your machinery runs reliably even during operational temperature rises.
Bi-directional load capacity: You can easily support both radial and axial loads in either direction across heavy industrial setups.

In a nutshell

The right choise for

With the Skf 6324/C3 single-row deep groove ball bearing, you keep heavy-duty machinery running smoothly and reliably. Featuring a 120 mm cylindrical bore, this robust steel bearing accommodates radial forces and bi-directional axial loads with ease. Its increased C3 radial internal clearance provides the necessary tolerance for thermal expansion, preventing internal preloading and seizing during high-speed or high-temperature operation. Thanks to its low-friction design, you benefit from quiet, vibration-free rotation across heavy drive shafts in electric motors, gearboxes, and pumps, ensuring dependable long-term performance.

Product information FAQ

€893.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 120 mm
Width: 55 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 260 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 120 mm
Width: 55 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 260 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: C3
Basic static load rating: 186
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 5600
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 3400
Bore diameter: 120
Basic dynamic load rating: 208
Outer diameter: 260

Brand SKF
01011097
EAN 7316576625763
Supplier number SKF 6324/C3
