What are the dimensions of this ball bearing?

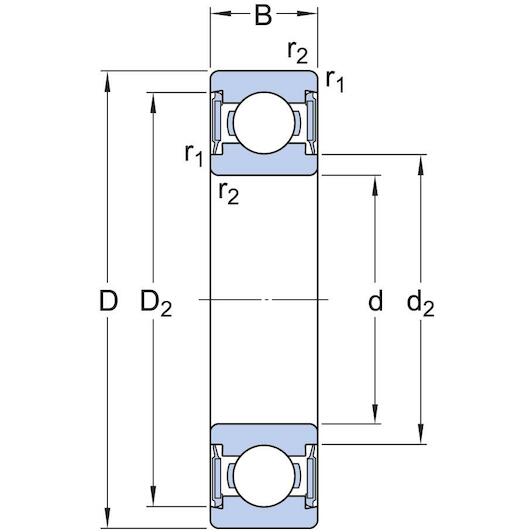

This bearing features an inside diameter of 75 mm, an outside diameter of 160 mm, and a width of 37 mm.

What does the 2RS1 designation indicate?

The 2RS1 suffix indicates that the bearing is fitted with rubber contact seals on both sides.

What internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (class CN).

Does this bearing require greasing prior to installation?

No, it comes pre-lubricated with grease from the factory and is ready to install.

What loads can this deep groove ball bearing handle?

This single row deep groove ball bearing accommodates radial and axial loads in both directions.

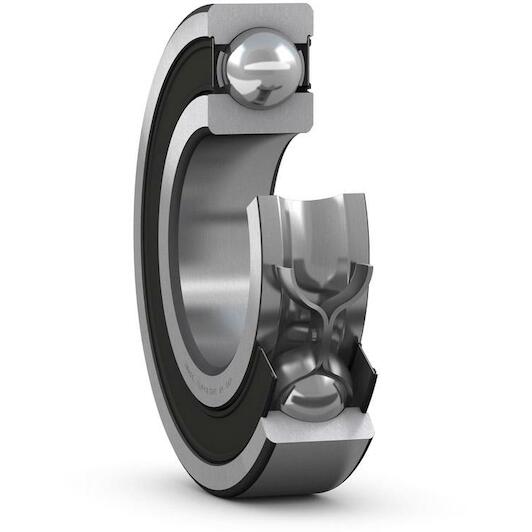

SKF 6315-2RS1 single-row groove ball bearing cylindrical 75x160x37 mm

Supplier number: SKF 6315-2RS1 | EAN 7316576623059

Recommended Retail Price €378.50

187.20 tax incl.

€154.71 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6315-2RS1

Practical benefits

Protection against dust entry: The contact rubber seals keep grease inside while blocking contaminants, ensuring you benefit from a longer service life.
Handles dynamic combined loads: The robust single-row design supports both radial and axial forces effectively in both rotational directions.
Low friction smooth running: You achieve quiet operation with minimal vibration and reduced maintenance during continuous high-speed use.

In a nutshell

The right choise for

Keep your electric motors, pumps, and industrial drive systems running smoothly with the Skf 6315-2RS1 deep groove ball bearing. Featuring a 75 mm cylindrical bore, a 160 mm outside diameter, and a 37 mm width, this single-row steel bearing reliably accommodates both radial and axial loads in either rotational direction. The dual 2RS1 rubber contact seals keep internal lubricant firmly trapped while blocking out dust, dirt, and moisture. This ensures low friction, reduced vibration, and quiet, maintenance-free operation, allowing you to install it straight out of the box and protect your machinery against unplanned downtime.

Product information FAQ

€187.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Width: 37 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 160 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Width: 37 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 160 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 76.5
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 2800
Bore diameter: 75
Basic dynamic load rating: 119
Outer diameter: 160

Brand SKF
01010908
EAN 7316576623059
Supplier number SKF 6315-2RS1

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: This bearing features an inside diameter of 75 mm, an outside diameter of 160 mm, and a width of 37 mm.
What does the 2RS1 designation indicate?: The 2RS1 suffix indicates that the bearing is fitted with rubber contact seals on both sides.
What internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (class CN).
Does this bearing require greasing prior to installation?: No, it comes pre-lubricated with grease from the factory and is ready to install.
What loads can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
