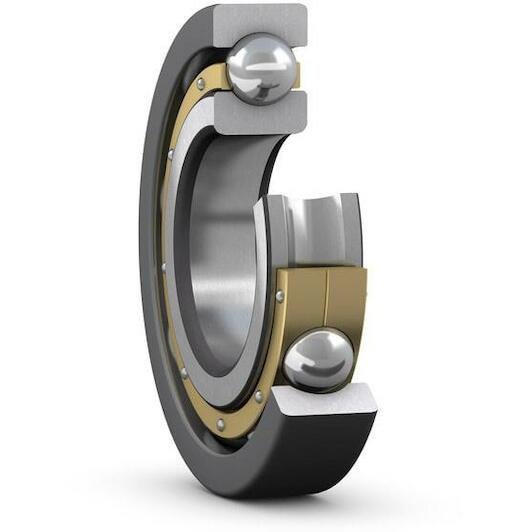

SKF 6314 M/C3VL0241 single-row groove ball bearing cylindrical 70x150x35 mm

Supplier number: SKF 6314 M/C3VL0241 | EAN 7316571429021
Recommended Retail Price €2,134.52
1,056.60 tax incl.
€873.22 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 2 products in stock.

  • Ordered before 20:00 - delivered as of 19/10/2026
  • Free shipping
  • Delivery by DHL

Superior electrical insulation for machinery

Practical benefits
  • Reliable electrical current protection: The insulating coating prevents stray currents from passing through, protecting you from electrical erosion and premature lubricant breakdown.
  • Solid machined brass cage: Built with a machined brass cage, it provides you with high stability and smooth rotation under demanding operating conditions.
  • Dependable Skf radial design: Designed with C3 internal clearance, it accommodates radial and axial loads easily at high rotational speeds.

In a nutshell

The right choise for

With the Skf 6314 M/C3VL0241 deep groove ball bearing, you protect your electric motors and drive systems from harmful stray currents. The insocoat coating on the outer ring prevents current passage, protecting against electrical erosion and premature lubricant breakdown. Featuring a machined brass cage and C3 radial internal clearance, it ensures smooth rotation and low vibration under demanding operating loads and elevated temperatures. Measuring 70X150X35 mm, this open ball bearing reliably accommodates both radial and axial forces, helping you reduce unplanned downtime and maintenance costs.



€1,056.60
In stock - tax incl.

Product information

Key features according to our expert

  • Inner diameter: 70 mm
  • Width: 35 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 150 mm

Product description

INSOCOAT single row deep groove ball bearings feature an electrically insulating coating on the outside surfaces of either the inner or outer bearing ring. This keeps stray electric currents from passing through the bearings, protecting them against electrical erosion damage and helping prevent lubricant degradation resulting from electric current discharge. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Coating protects against electrical erosion damage
  • Reduced lubricant degradation resulting from electric current discharge
  • Typical benefits of single row deep groove ball bearings

Documents

All Features

Inner diameter
70 mm
Width
35 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
150 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
68
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
9500
Lubricant
None
Cage
Machined metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Insulation coating on outer ring
Sealing
Without
Limiting speed
9000
Bore diameter
70
Basic dynamic load rating
104
Outer diameter
150
  • Brand SKF
  • EAN 7316571429021
  • Supplier number SKF 6314 M/C3VL0241

Frequently asked questions about this product

Answered by specialists
What are the dimensions of this SKF deep groove ball bearing?
The bearing has an inside diameter of 70 mm, an outside diameter of 150 mm, and a width of 35 mm.
What is the purpose of the INSOCOAT VL0241 coating?
The coating on the outer ring provides electrical insulation, preventing stray electric currents and electrical erosion damage.
What does the C3 internal clearance mean?
C3 denotes a radial internal clearance greater than normal, suitable for higher operating temperatures or speeds.
What material is used for the bearing cage?
This bearing features a machined brass cage (indicated by M).
Is this ball bearing sealed?
No, this is an open deep groove ball bearing with no seals.
