What are the dimensions of this SKF ball bearing?

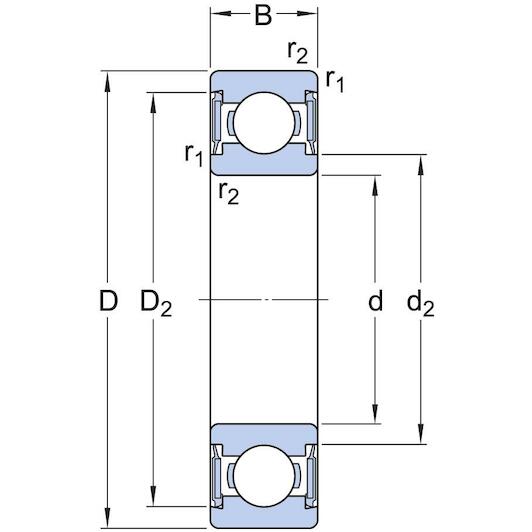

The bearing has an inside diameter of 70 mm, an outside diameter of 150 mm, and a width of 35 mm.

What does the 2RS1 designation mean for this bearing?

It indicates that the bearing has contact rubber seals on both sides to protect against dust, dirt, and moisture.

What radial internal clearance does this bearing have?

This deep groove ball bearing features normal radial internal clearance (CN).

What loads can this bearing accommodate?

This single row deep groove ball bearing accommodates radial and axial loads in both directions.

Does this bearing require lubrication before installation?

No, the bearing is factory pre-lubricated with grease and ready for immediate installation.

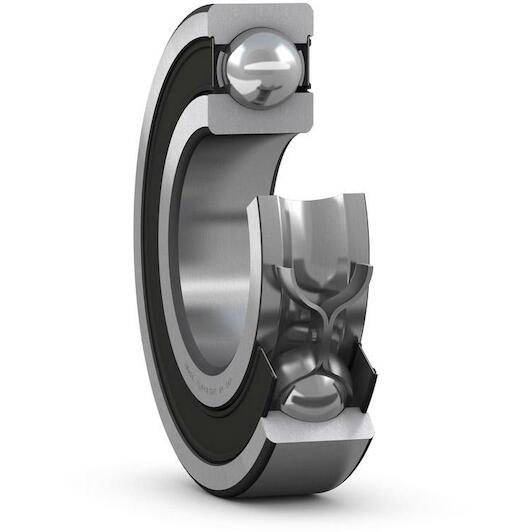

SKF 6314-2RS1 single-row groove ball bearing cylindrical 70x150x35 mm

Supplier number: SKF 6314-2RS1 | EAN 7316570661224

Recommended Retail Price €304.93

150.80 tax incl.

€124.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information FAQ

€150.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 70 mm
Width: 35 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 70 mm
Width: 35 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 68
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 3000
Bore diameter: 70
Basic dynamic load rating: 111
Outer diameter: 150

Brand SKF
01010355
EAN 7316570661224
Supplier number SKF 6314-2RS1

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has an inside diameter of 70 mm, an outside diameter of 150 mm, and a width of 35 mm.
What does the 2RS1 designation mean for this bearing?: It indicates that the bearing has contact rubber seals on both sides to protect against dust, dirt, and moisture.
What radial internal clearance does this bearing have?: This deep groove ball bearing features normal radial internal clearance (CN).
What loads can this bearing accommodate?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
Does this bearing require lubrication before installation?: No, the bearing is factory pre-lubricated with grease and ready for immediate installation.
