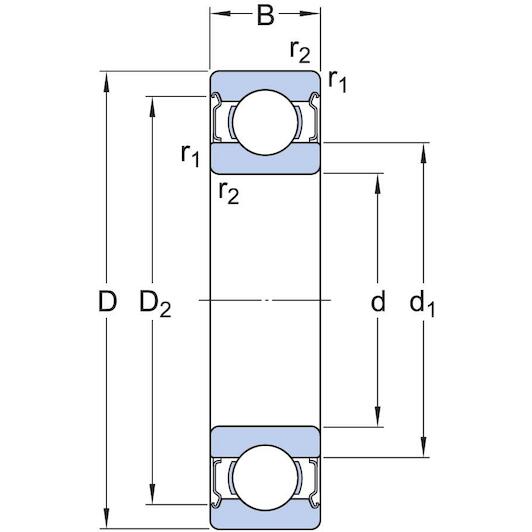

What are the dimensions of this SKF bearing?

The bore diameter is 65 mm, the outside diameter is 140 mm, and the width is 33 mm.

What does the 2Z designation mean?

The 2Z designation means the bearing is fitted with a metal shield on both sides to protect against dirt.

What does the C3 radial clearance indicate?

C3 indicates a greater internal radial clearance than normal, suitable for higher speeds or thermal expansion.

What type of bore does the SKF 6313-2Z/C3 have?

This ball bearing features a standard cylindrical bore with a diameter of 65 mm.

What types of loads can this deep groove ball bearing handle?

This single-row deep groove ball bearing accommodates both radial and axial loads in both directions.

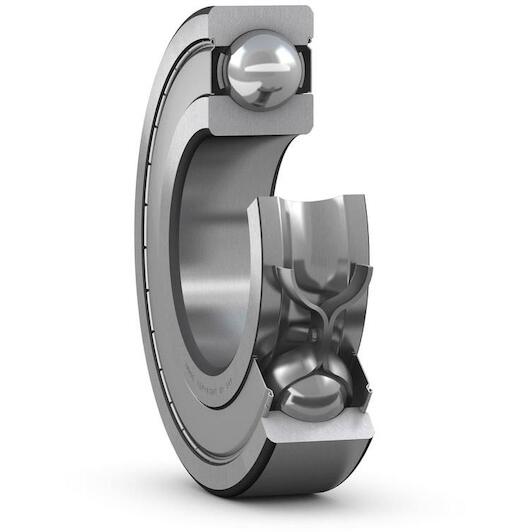

SKF 6313-2Z/C3 single-row groove ball bearing cylindrical 65x140x33 mm

Supplier number: SKF 6313-2Z/C3 | EAN 7316576682162

Recommended Retail Price €232.39

114.95 tax incl.

€95.00 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 21/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance from Skf

Practical benefits

Increased C3 internal clearance: The C3 radial internal clearance ensures you maintain smooth rotation even when operating temperatures and speeds rise.
Dual metal shield protection: Integrated 2Z shields keep grease inside while blocking contaminants to extend service life.
Versatile combined load capacity: You handle both radial and axial loads in either direction with low friction and minimal maintenance.

In a nutshell

The right choise for

With the Skf 6313-2Z/C3 single-row deep groove ball bearing, you keep heavy-duty shafts and electric motors running smoothly and reliably. Thanks to the increased C3 radial internal clearance, you prevent bearing seizure when operating temperatures and rotational speeds rise. The dual 2Z metal shields keep lubricant sealed inside while blocking dust and contaminants, extending machine service life. Measuring 65X140X33 mm with a cylindrical bore, this steel bearing effortlessly accommodates both radial and axial loads in either direction with minimal maintenance.

Product information FAQ

€114.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 33 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 140 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 33 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 140 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 60
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 10000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 97.5
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 5300
Bore diameter: 65
Coating: Without
Outer diameter: 140

Brand SKF
01010948
EAN 7316576682162
Supplier number SKF 6313-2Z/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bore diameter is 65 mm, the outside diameter is 140 mm, and the width is 33 mm.
What does the 2Z designation mean?: The 2Z designation means the bearing is fitted with a metal shield on both sides to protect against dirt.
What does the C3 radial clearance indicate?: C3 indicates a greater internal radial clearance than normal, suitable for higher speeds or thermal expansion.
What type of bore does the SKF 6313-2Z/C3 have?: This ball bearing features a standard cylindrical bore with a diameter of 65 mm.
What types of loads can this deep groove ball bearing handle?: This single-row deep groove ball bearing accommodates both radial and axial loads in both directions.
