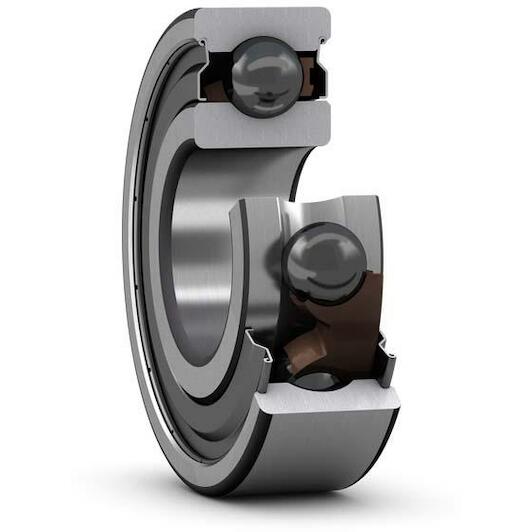

SKF 6310-2ZTN9/HC5C3WT hybrid ceramic groove ball bearing with protective plates on both sides 50 mm

SKF
Supplier number: SKF 6310-2ZTN9/HC5C3WT | EAN 07316580396116
Recommended Retail Price €1,016.02
502.95 tax incl.
€415.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/10/2026

  • Ordered before 20:00 - delivered as of 28/10/2026
  • Free shipping
  • Delivery by DHL
✆ Talk to a specialist


Product information
€502.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 50 mm
  • Width: 27 mm
  • Number of rows: 1
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Metal
  • Radial clearance: C3
  • Material (bearing): Hybrid ceramic
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • High temperature: Yes
  • Outer diameter: 110 mm

Product description

Hybrid ceramic single row deep groove ball bearings have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The integral shields can significantly prolong bearing service life because they keep lubricant in the bearings and contaminants out. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

  • Protected against electric current damage
  • Integral shields prolong bearing service life
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings

All Features

Inner diameter
50 mm
Width
27 mm
Number of rows
1
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Metal
Radial clearance
C3
Material (bearing)
Hybrid ceramic
Material (cage)
Plastic
Bore type
Cylindrical
High temperature
Yes
Outer diameter
110 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
38
Material, bearing
Hybrid (ceramic balls)
Relubrication feature
Without
Reference speed
16000
Lubricant
Grease
Sealing type
Non-contact
Cage
Non-metallic
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Shield on both sides
Limiting speed
8500
Bore diameter
50
Basic dynamic load rating
61.8
Outer diameter
110
  • Brand SKF
  • EAN 07316580396116
  • Supplier number SKF 6310-2ZTN9/HC5C3WT
