skf_6309_2zc4
SKF

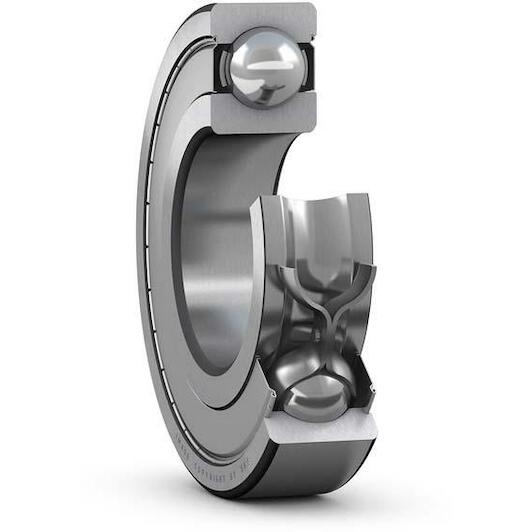

SKF 6309-2Z/C4 groove ball bearing with protective plates on both sides 45 mm

Recommended Retail Price €89.81
44.40 tax incl.
€36.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Ordered before 20:00 - delivered as of 20/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 45 mm
  • Outer diameter: 100 mm
  • Width: 25 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316574602148
  • Supplier number: SKF 6309-2Z/C4
Inner diameter
45 mm
Outer diameter
100 mm
Width
25 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Sealing type
Non-contact
Lubricant
Grease
Skf performance class
SKF Explorer
Reference speed
15000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
31.5
Radial internal clearance
C4
Tolerance class
Class P6 (P6)
Filling slots
Without
Sealing
Shield on both sides
Locating feature, bearing outer ring
None
Limiting speed
7500
Bore diameter
45
Number of rows
1
Basic dynamic load rating
55.3
Coating
Without
Outside diameter
100
Bore type
Cylindrical
