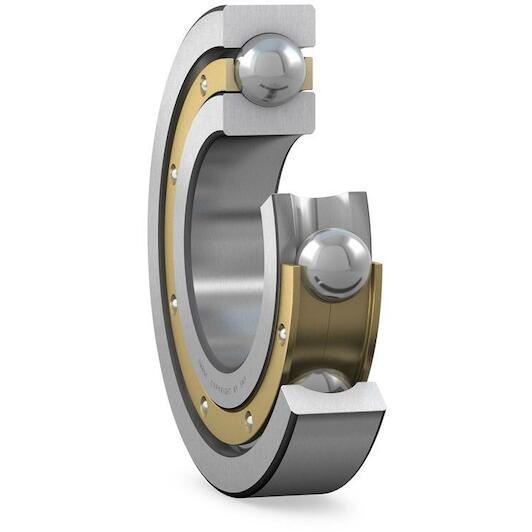

SKF 6244 M single-row groove ball bearing cylindrical 220x400x65 mm

This product has been discontinued.

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 220 mm
  • Width: 65 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 400 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570851083
  • Supplier number: SKF 6244 M
Inner diameter
220 mm
Width
65 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
400 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
365 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
3,200 r/min
Lubricant
None
Cage
Machined metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
3,000 r/min
Bore diameter
220 mm
Basic dynamic load rating
296 kN
Outside diameter
400 mm
