Does this ball bearing have seals?

No, this is an open bearing without seals, designed for external lubrication with oil or grease.

What radial clearance does this bearing have?

This model features normal internal radial clearance (CN).

What types of load can this deep groove ball bearing handle?

The single row design accommodates both radial and axial loads in both directions.

Is this bearing suitable for high-temperature applications?

No, this bearing is not rated for high-temperature operating conditions.

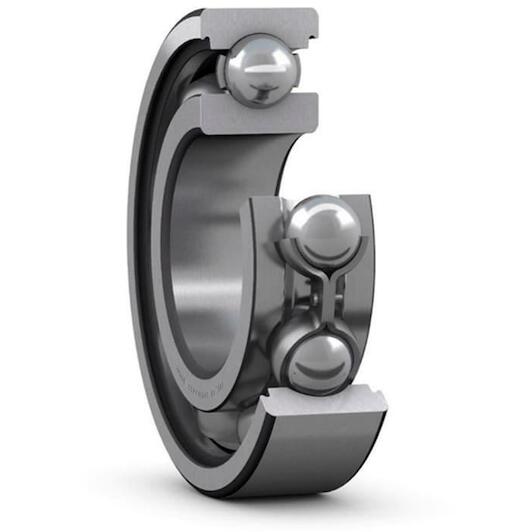

SKF 6217 single-row groove ball bearing cylindrical 85x150x28 mm

Supplier number: SKF 6217 | EAN 7316577302823

Recommended Retail Price €316.38

156.60 tax incl.

€129.42 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6217

Practical benefits

Bidirectional load support: You can handle both radial and axial forces smoothly in either operating direction.
Low frictional resistance: The deep groove geometry lets you achieve high rotational speeds with minimal heat buildup.
Durable steel construction: Solid steel rings deliver dependable performance and wear resistance in demanding machinery.

In a nutshell

The right choise for

With the Skf 6217 single row deep groove ball bearing, you ensure smooth and dependable operation across your rotating machinery. Designed with a cylindrical bore and an open construction, it reliably accommodates both radial and axial loads in either direction. Its durable steel build and low frictional resistance allow you to achieve high rotational speeds with minimal heat generation. Featuring an inside diameter of 85 mm, an outside diameter of 150 mm, and a width of 28 mm, this bearing is ideal for lubricated applications such as electric motors, pumps, and gearboxes, helping you complete overhauls efficiently and maintain long-term stability.

Product information FAQ

€156.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 85 mm
Width: 28 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 85 mm
Width: 28 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 64
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 9000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 5600
Bore diameter: 85
Basic dynamic load rating: 87.1
Outer diameter: 150

Brand SKF
01010265
EAN 7316577302823
Supplier number SKF 6217

Frequently asked questions about this product

Answered by specialists

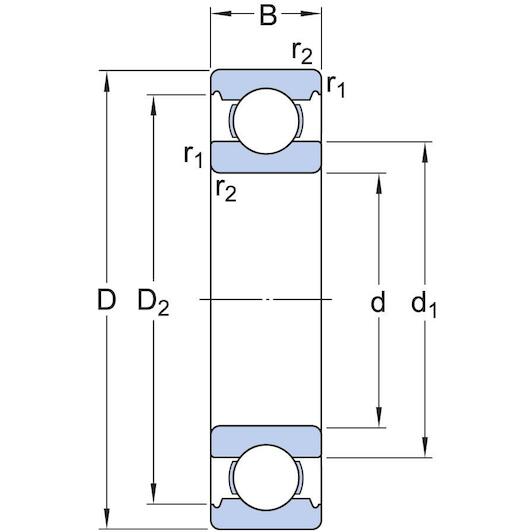

What are the dimensions of this Skf 6217 ball bearing?: This bearing has an inside diameter of 85 mm, an outside diameter of 150 mm, and a width of 28 mm.
Does this ball bearing have seals?: No, this is an open bearing without seals, designed for external lubrication with oil or grease.
What radial clearance does this bearing have?: This model features normal internal radial clearance (CN).
What types of load can this deep groove ball bearing handle?: The single row design accommodates both radial and axial loads in both directions.
Is this bearing suitable for high-temperature applications?: No, this bearing is not rated for high-temperature operating conditions.
