What are the exact dimensions of this SKF deep groove ball bearing?

The bearing has an inner diameter of 85 mm, an outer diameter of 150 mm, and a width of 28 mm.

What does the C3 clearance designation mean?

C3 denotes greater radial internal clearance than standard, accommodating thermal expansion and high speeds.

What type of shielding does the 2Z designation indicate?

The 2Z code means the bearing is equipped with non-contact metal shields on both sides to keep contaminants out.

What bore type does the 6217-2Z/C3 bearing have?

It features a standard cylindrical bore designed for direct mounting on an 85 mm shaft.

What loads can this single row deep groove ball bearing accommodate?

It is designed to accommodate both radial and axial loads in both directions.

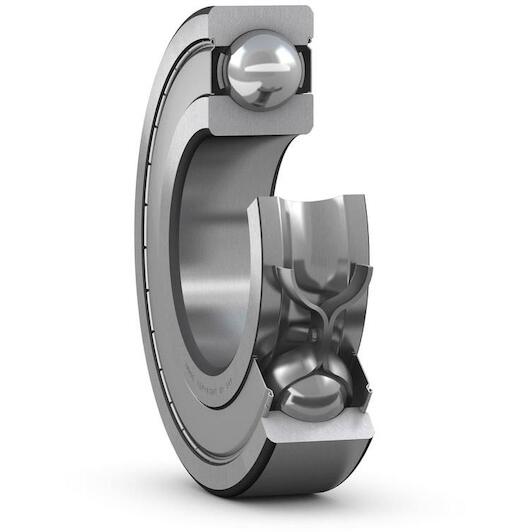

SKF 6217-2Z/C3 single-row groove ball bearing cylindrical 85x150x28 mm

Supplier number: SKF 6217-2Z/C3 | EAN 7316576681677

Recommended Retail Price €364.26

180.20 tax incl.

€148.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable performance with Skf

Practical benefits

Effective protection against debris: Dual metal shields keep lubricant sealed inside while keeping dust and contaminants out of your machinery.
Smooth running with clearance: The C3 internal clearance allows you to maintain low friction operation even under thermal expansion.
Versatile bidirectional load support: You handle radial and axial loads efficiently in both directions for long-lasting mechanical reliability.

In a nutshell

The right choise for

Keep your industrial machinery running reliably with the Skf 6217-2Z/C3 single row deep groove ball bearing. With dual metal shields on both sides, factory lubrication stays sealed inside while dust and contaminants are effectively kept out. The C3 internal radial clearance accommodates thermal expansion, allowing your equipment to maintain smooth, low-friction operation even under high operating speeds and elevated temperatures. Featuring an 85 mm inner diameter, 150 mm outer diameter, and 28 mm width, its cylindrical bore mounts directly onto the shaft. Built from durable steel, this bearing handles both radial and axial loads in either direction, ensuring dependable mechanical performance in electric motors, gearboxes, and conveyor drive systems.

Product information FAQ

€180.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 85 mm
Width: 28 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 85 mm
Width: 28 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 64
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 9000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 87.1
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 4500
Bore diameter: 85
Coating: Without
Outer diameter: 150

Brand SKF
01011936
EAN 7316576681677
Supplier number SKF 6217-2Z/C3

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF deep groove ball bearing?: The bearing has an inner diameter of 85 mm, an outer diameter of 150 mm, and a width of 28 mm.
What does the C3 clearance designation mean?: C3 denotes greater radial internal clearance than standard, accommodating thermal expansion and high speeds.
What type of shielding does the 2Z designation indicate?: The 2Z code means the bearing is equipped with non-contact metal shields on both sides to keep contaminants out.
What bore type does the 6217-2Z/C3 bearing have?: It features a standard cylindrical bore designed for direct mounting on an 85 mm shaft.
What loads can this single row deep groove ball bearing accommodate?: It is designed to accommodate both radial and axial loads in both directions.
