What are the dimensions of this ball bearing?

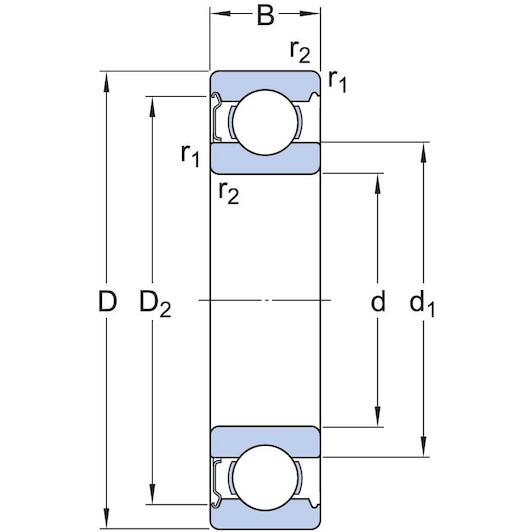

The bearing has a 40 mm bore diameter, an 80 mm outside diameter, and an 18 mm width.

What does the suffix Z mean on this SKF bearing?

The Z designation indicates that the bearing has a non-contact metal shield on one side.

What internal clearance does this bearing have?

This bearing features standard radial internal clearance (designated as CN).

What type of bore does the SKF 6208-Z feature?

It features a standard cylindrical bore suitable for direct shaft mounting.

What types of load can this deep groove ball bearing handle?

This single row deep groove ball bearing accommodates radial and axial loads in both directions.

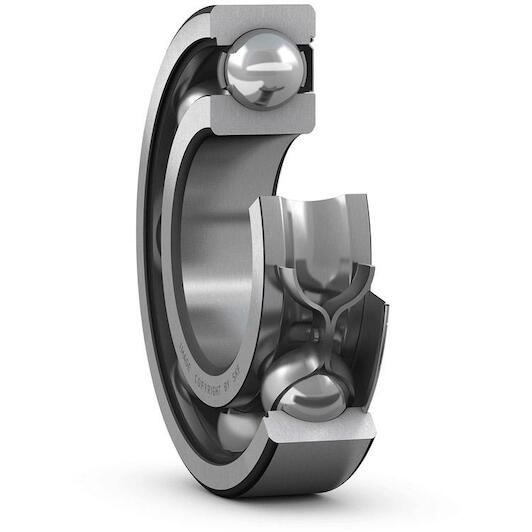

SKF 6208-Z single-row groove ball bearing cylindrical 40x80x18 mm

Supplier number: SKF 6208-Z | EAN 7316577094346

Recommended Retail Price €42.82

21.20 tax incl.

€17.52 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6208-Z

Practical benefits

Low friction at high speeds: The optimized raceway geometry minimizes vibration, allowing you to achieve efficient high-speed rotation.
Single metallic shield protection: The integrated metal shield retains internal lubricant while protecting critical running surfaces from external debris.
Versatile bidirectional load capacity: You can easily support both radial and axial loads in either direction during demanding mechanical operations.

In a nutshell

The right choise for

With the Skf 6208-Z single row deep groove ball bearing, you ensure smooth and reliable rotation for shafts in electric motors, pumps, and gearboxes. Thanks to its cylindrical bore, you can mount this 40X80X18 mm steel bearing directly and accurately onto the shaft. The optimized raceway minimizes friction and vibration at high speeds while easily handling both radial and axial loads in either direction. The integrated single metal shield protects internal rolling elements from dust and debris while retaining lubricant on the protected side. This allows you to prevent unexpected downtime and maintain dependable performance in all your mechanical installations.

Product information FAQ

€21.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 80 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 80 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 19
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 18000
Skf performance class: SKF Explorer
Lubricant: None
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 32.5
Locating feature, bearing outer ring: None
Sealing: Shield on one side
Limiting speed: 11000
Bore diameter: 40
Coating: Without
Outer diameter: 80

Brand SKF
01010223
EAN 7316577094346
Supplier number SKF 6208-Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bearing has a 40 mm bore diameter, an 80 mm outside diameter, and an 18 mm width.
What does the suffix Z mean on this SKF bearing?: The Z designation indicates that the bearing has a non-contact metal shield on one side.
What internal clearance does this bearing have?: This bearing features standard radial internal clearance (designated as CN).
What type of bore does the SKF 6208-Z feature?: It features a standard cylindrical bore suitable for direct shaft mounting.
What types of load can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
