What are the dimensions of this ball bearing?

The bearing has an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 17 mm.

What does the C3 designation mean for this bearing?

C3 indicates greater radial internal clearance than normal, suitable for higher speeds and thermal expansion.

Is this SKF ball bearing sealed?

No, this model is an open bearing without integrated seals or shields.

What bore type does this deep groove ball bearing have?

This bearing features a standard cylindrical bore.

What loads can this bearing accommodate?

This single row deep groove ball bearing accommodates radial and axial loads in both directions.

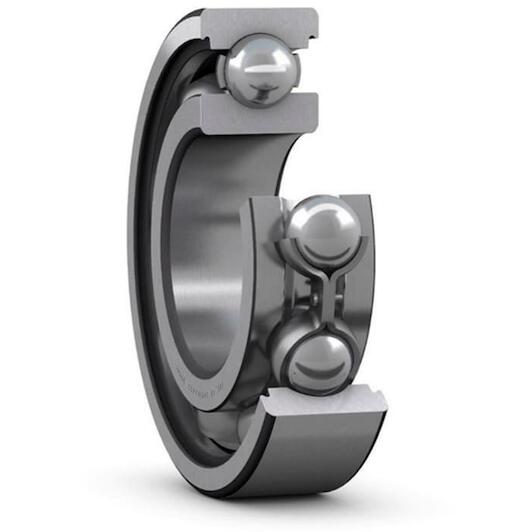

SKF 6207/C3 single-row groove ball bearing cylindrical 35x72x17 mm

Supplier number: SKF 6207/C3 | EAN 7316571369013

1 review(s)

Recommended Retail Price €27.68

13.60 tax incl.

€11.24 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation under demanding loads

Practical benefits

Increased C3 radial clearance: You accommodate thermal expansion smoothly during demanding operations thanks to the larger internal clearance of this Skf bearing.
Handles versatile load directions: The deep raceway design reliably supports both radial and axial forces across multiple operating directions.
Low friction open design: An unsealed open construction gives you minimal rotational resistance to support efficient high-speed performance.

In a nutshell

The right choise for

Keep your rotating machinery running smoothly with the Skf 6207/C3 single row deep groove ball bearing. Designed with an enlarged C3 radial internal clearance, it accommodates thermal expansion during high-speed and elevated-temperature operations in electric motors, gearboxes, pumps, and conveyors. The deep raceway profile reliably supports both radial and axial loads in both directions. Measuring 35X72X17 mm with a standard cylindrical bore, this unsealed open steel bearing minimizes friction to deliver efficient power transmission and dependable performance across demanding industrial drives.

Product information FAQ Reviews

€13.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: C3
Basic static load rating: 15.3
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 20000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 13000
Bore diameter: 35
Basic dynamic load rating: 27
Outer diameter: 72

Brand SKF
01011027
EAN 7316571369013
Supplier number SKF 6207/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bearing has an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 17 mm.
What does the C3 designation mean for this bearing?: C3 indicates greater radial internal clearance than normal, suitable for higher speeds and thermal expansion.
Is this SKF ball bearing sealed?: No, this model is an open bearing without integrated seals or shields.
What bore type does this deep groove ball bearing have?: This bearing features a standard cylindrical bore.
What loads can this bearing accommodate?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
