What are the dimensions of this SKF deep groove ball bearing?

The bearing features an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 17 mm.

What is the benefit of the hybrid ceramic balls?

Ceramic balls provide electrical insulation against stray currents, lower friction, and increase wear resistance.

What type of sealing does this bearing have?

It is equipped with 2RZ low-friction seals on both sides to keep contaminants out.

What does the C3 clearance designation mean?

C3 denotes increased internal radial clearance, suited for higher operating temperatures and speeds.

What material is the cage made of?

The bearing cage is made of glass-fibre reinforced polyamide plastic (TN9).

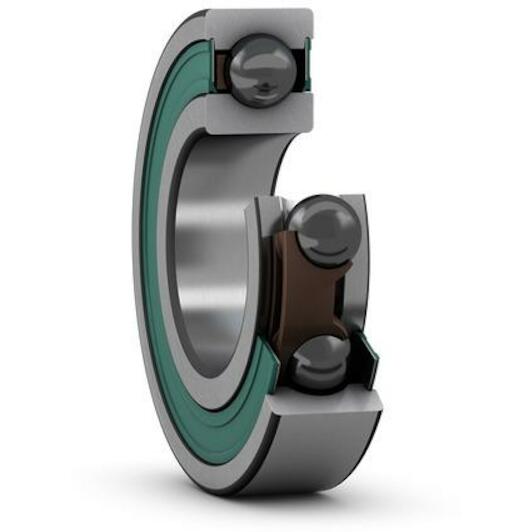

SKF 6207-2RZTN9/HC5C3WT Hybrid ceramic groove ball bearing with seal on both sides 35 mm

Supplier number: SKF 6207-2RZTN9/HC5C3WT | EAN 7316571550855

Recommended Retail Price €252.04

124.60 tax incl.

€102.98 excl. VAT (incl. all environmental contributions)

On order: delivered from 24/10/2026

Ordered before 20:00 - delivered as of 24/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Maximum reliability with the 6207-2RZTN9/HC5C3WT

Practical benefits

Exceptional electrical insulation: You prevent electrical arcing and current damage thanks to ceramic silicon nitride balls that insulate your motor.
Effective dual seals: Low-friction seals retain essential lubricant and lock out contaminants to significantly extend bearing service life.
Reduced friction and wear: You achieve higher operating speeds and lower operating temperatures for smooth, dependable performance.

In a nutshell

The right choise for

With the Skf 6207-2RZTN9/HC5C3WT hybrid ceramic deep groove ball bearing, you protect electric motor drives and high-speed machinery from stray currents and electrical erosion. The ceramic balls deliver outstanding electrical insulation while significantly reducing friction and operating heat at high speeds. Featuring C3 radial internal clearance, it accommodates thermal expansion with ease, supported by a smooth glass-fibre reinforced polyamide cage. Low-friction 2RZ seals on both sides retain essential grease and block out dust and dirt. Sized at 35 x 72 x 17 mm, this bearing provides wear resistance, reduced maintenance, and a longer service life for demanding industrial applications.

Product information FAQ

€124.60

tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Radial clearance: C3
Material (bearing): Hybrid ceramic
Material (cage): Plastic
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm

Product description

Hybrid ceramic single row deep groove ball bearings with seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

Protected against electric current damage
Integral sealing prolongs bearing service life
Especially suited for use in difficult conditions and contaminated environments
Typical benefits of single row deep groove ball bearings

All Features

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Radial clearance: C3
Material (bearing): Hybrid ceramic
Material (cage): Plastic
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: C3
Basic static load rating: 15.3
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 24000
Lubricant: Grease
Sealing type: Non-contact
Locating feature, bearing outer ring: None
Material, bearing: Hybrid (ceramic balls)
Filling slots: Without
Basic dynamic load rating: 25.5
Sealing: Seal on both sides
Limiting speed: 13000
Bore diameter: 35
Coating: Without
Outer diameter: 72

Brand SKF
01014231
EAN 7316571550855
Supplier number SKF 6207-2RZTN9/HC5C3WT

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF deep groove ball bearing?: The bearing features an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 17 mm.
What is the benefit of the hybrid ceramic balls?: Ceramic balls provide electrical insulation against stray currents, lower friction, and increase wear resistance.
What type of sealing does this bearing have?: It is equipped with 2RZ low-friction seals on both sides to keep contaminants out.
What does the C3 clearance designation mean?: C3 denotes increased internal radial clearance, suited for higher operating temperatures and speeds.
What material is the cage made of?: The bearing cage is made of glass-fibre reinforced polyamide plastic (TN9).
