What are the dimensions of this SKF ball bearing?

This ball bearing has an inside diameter of 25 mm, an outside diameter of 52 mm, and a width of 15 mm.

What does the C3 clearance mean for this bearing?

C3 indicates greater radial internal clearance than normal, suitable for higher speeds and thermal expansion.

How is this deep groove ball bearing sealed?

It features rubber contact seals on both sides (2RS2) to keep contaminants out and retain lubricant.

What type of bore does this bearing have?

It has a standard cylindrical bore designed for direct mounting onto a 25 mm shaft.

Can this SKF bearing handle axial loads?

Yes, single-row deep groove ball bearings accommodate both radial and axial loads in both directions.

SKF 6205-2RS2/C3GJN single-row groove ball bearing cylindrical 25x52x15 mm

Supplier number: SKF 6205-2RS2/C3GJN | EAN 7316571533728

Recommended Retail Price €25.08

12.40 tax incl.

€10.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf bearing

Practical benefits

Effective double seal protection: The rubber contact seals keep lubricant in while preventing dust and moisture from entering the raceway.
Enhanced C3 radial clearance: You achieve smooth operation at higher speeds where thermal expansion requires greater internal clearance.
Handles combined directional loads: The precision steel build supports both radial and axial forces while ensuring low friction and minimal vibration.

In a nutshell

The right choise for

Keep your electric motors, pumps, and machinery running smoothly with the Skf 6205-2RS2/C3GJN deep groove ball bearing. Designed for shafts with a 25 mm cylindrical bore, this bearing features dual rubber contact seals that effectively retain lubricant while blocking dust and moisture, eliminating the need for frequent re-lubrication. The increased C3 internal radial clearance accommodates thermal expansion during high-speed and demanding operating conditions, preventing unwanted friction and binding. Built from robust steel, it reliably handles combined radial and axial loads to deliver quiet, low-vibration performance and extended service life across tough industrial applications.

Product information FAQ

€12.40

In stock - tax incl.

Key features according to our expert

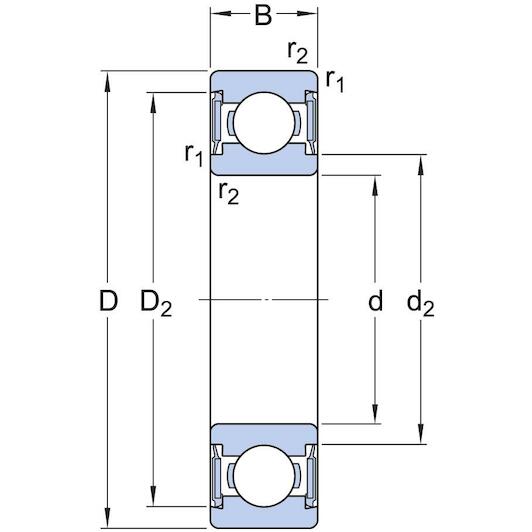

Inner diameter: 25 mm
Width: 15 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 52 mm

Product description:

Deep groove ball bearings are particularly versatile
They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 15 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 52 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 7.8 kN
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 28,000 r/min
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 14.8 kN
Locating feature, bearing outer ring: None
Sealing: Seal on both sides
Limiting speed: 18,000 r/min
Bore diameter: 25 mm
Coating: Without
Outer diameter: 52 mm

Brand SKF
01011726
EAN 7316571533728
Supplier number SKF 6205-2RS2/C3GJN

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: This ball bearing has an inside diameter of 25 mm, an outside diameter of 52 mm, and a width of 15 mm.
What does the C3 clearance mean for this bearing?: C3 indicates greater radial internal clearance than normal, suitable for higher speeds and thermal expansion.
How is this deep groove ball bearing sealed?: It features rubber contact seals on both sides (2RS2) to keep contaminants out and retain lubricant.
What type of bore does this bearing have?: It has a standard cylindrical bore designed for direct mounting onto a 25 mm shaft.
Can this SKF bearing handle axial loads?: Yes, single-row deep groove ball bearings accommodate both radial and axial loads in both directions.
