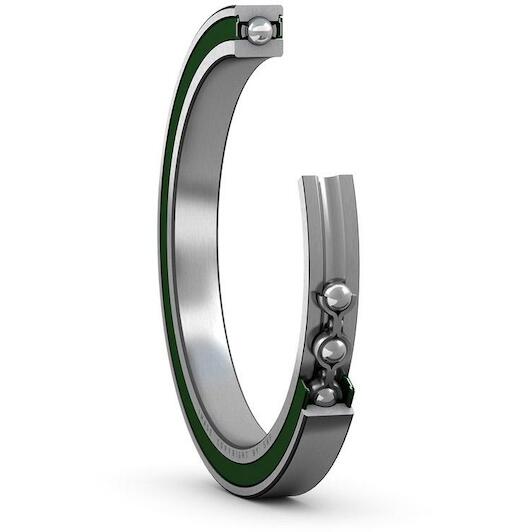

SKF 61828-2RZ single-row groove ball bearing cylindrical 140x175x18 mm

Supplier number: SKF 61828-2RZ | EAN 7316577121745
Recommended Retail Price €984.61
487.40 tax incl.
€402.81 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/10/2026

  • Ordered before 20:00 - delivered as of 30/10/2026
  • Free shipping
  • Delivery by DHL


€487.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 140 mm
  • Width: 18 mm
  • Number of rows: 1
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Rubber/metal
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 175 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Documents

All Features

Inner diameter
140 mm
Width
18 mm
Number of rows
1
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Rubber/metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
175 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
46.5
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
7500
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Seal on both sides
Limiting speed
3600
Bore diameter
140
Basic dynamic load rating
39
Outer diameter
175
  • Brand SKF
  • EAN 7316577121745
  • Supplier number SKF 61828-2RZ
