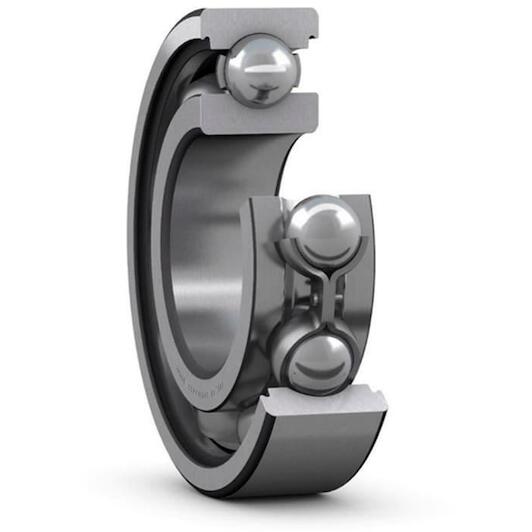

SKF 61824 single-row groove ball bearing cylindrical 120x150x16 mm

Recommended Retail Price €621.75
307.80 tax incl.
€254.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Ordered before 20:00 - delivered as of 01/06/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 16 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576641886
  • Supplier number: SKF 61824
Inner diameter
120 mm
Width
16 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
150 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
28
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
8500
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
5300
Bore diameter
120
Basic dynamic load rating
29.1
Outside diameter
150
