What are the dimensions of this SKF ball bearing?

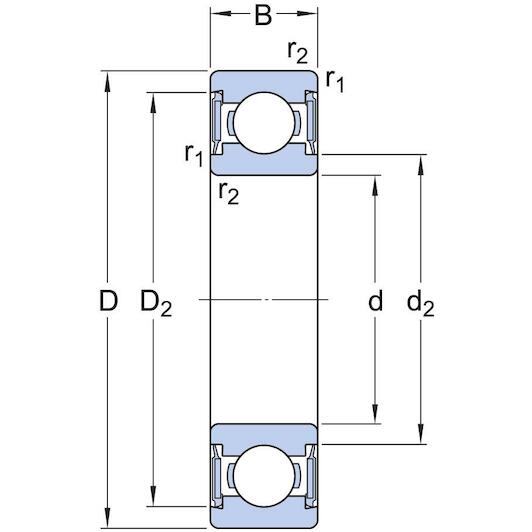

This bearing has an inside diameter of 110 mm, an outside diameter of 140 mm, and a width of 16 mm with a cylindrical bore.

What does the 2RS1 designation mean on this bearing?

The 2RS1 code indicates that the bearing is fitted with contact rubber seals on both sides to keep contaminants out.

What types of loads can this deep groove ball bearing handle?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

What internal clearance does this bearing have?

This bearing features standard radial internal clearance (class CN), making it suitable for general applications.

Does this ball bearing require lubrication before installation?

No, with its double-sided seals, the bearing comes pre-lubricated with factory grease and is maintenance-free.

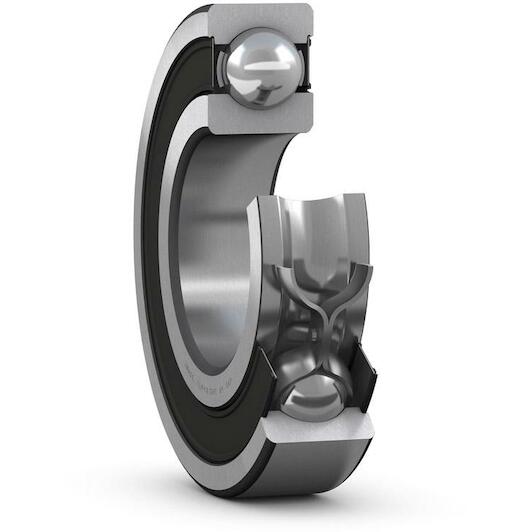

SKF 61822-2RS1 single-row groove ball bearing cylindrical 110x140x16 mm

Supplier number: SKF 61822-2RS1 | EAN 7316577100511

Recommended Retail Price €576.42

285.20 tax incl.

€235.70 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf ball bearings

Practical benefits

Effective protection against contamination: The dual rubber contact seals retain internal lubricant and keep dirt and moisture away from moving components.
Low friction smooth running: Premium steel construction ensures you achieve quiet operation, minimal vibration, and extended operating service life.
Handles combined directional loads: You easily support radial and axial forces simultaneously in both directions within tight machine clearances.

In a nutshell

The right choise for

With the Skf 61822-2RS1 single row deep groove ball bearing, you ensure smooth, low-friction shaft rotation in space-restricted machinery. Featuring dimensions of 110X140X16 mm, it fits effortlessly into tight housings across electric motors, pumps, and gearboxes. The dual rubber contact seals retain internal lubricant while keeping dust and moisture out, eliminating the need for periodic relubrication. Built with a robust steel construction, a brass sheet cage, and standard cn radial clearance, it reliably handles combined radial and axial loads in both directions. This allows you to maintain continuous, quiet, and maintenance-free operation across your equipment.

Product information FAQ

€285.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 110 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 140 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 110 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 140 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 26
Material, bearing: Bearing steel
Relubrication feature: Without
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 2600
Bore diameter: 110
Basic dynamic load rating: 28.1
Outer diameter: 140

Brand SKF
01011308
EAN 7316577100511
Supplier number SKF 61822-2RS1

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: This bearing has an inside diameter of 110 mm, an outside diameter of 140 mm, and a width of 16 mm with a cylindrical bore.
What does the 2RS1 designation mean on this bearing?: The 2RS1 code indicates that the bearing is fitted with contact rubber seals on both sides to keep contaminants out.
What types of loads can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
What internal clearance does this bearing have?: This bearing features standard radial internal clearance (class CN), making it suitable for general applications.
Does this ball bearing require lubrication before installation?: No, with its double-sided seals, the bearing comes pre-lubricated with factory grease and is maintenance-free.
