What are the dimensions of this SKF ball bearing?

This ball bearing has an inside diameter of 7 mm, an outside diameter of 19 mm, and a width of 6 mm.

What does the 2RSH designation indicate?

The 2RSH suffix indicates that the bearing has rubber contact seals on both sides to keep contaminants out.

What does the C3 radial internal clearance mean?

A C3 rating means the bearing has greater radial clearance than normal, accommodating thermal expansion and high speeds.

Does this bearing require lubrication before installation?

No, the bearing comes pre-lubricated with grease from the factory and is ready to install.

What type of bore does the SKF 607-2RSH/C3 have?

This bearing features a standard cylindrical bore suitable for fitting onto straight shafts.

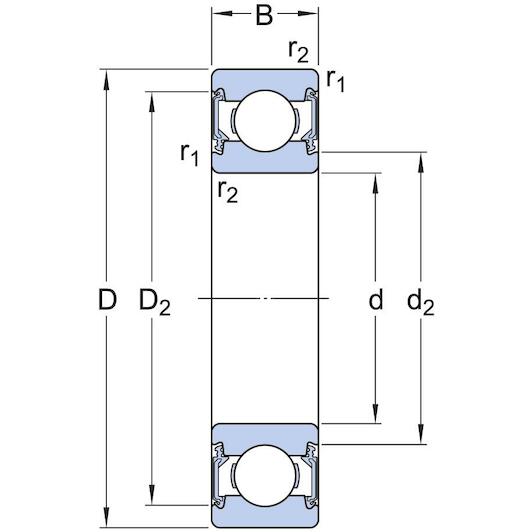

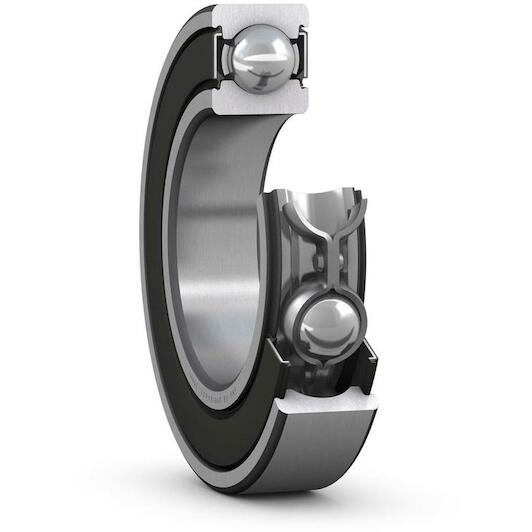

SKF 607-2RSH/C3 single-row groove ball bearing cylindrical 7x19x6 mm

Supplier number: SKF 607-2RSH/C3 | EAN 7316571839233

10.67 tax incl.

€8.82 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf precision

Practical benefits

Reliable dual contact seals: Rubber seals on both sides retain lubricant effectively while keeping contaminants and moisture out of the rolling elements.
Extra internal C3 clearance: The increased radial clearance accommodates thermal expansion, ensuring you maintain smooth operation even at higher running temperatures.
Low friction smooth running: High-quality bearing steel construction reduces friction and vibration, delivering extended operational life with minimal maintenance.

In a nutshell

The right choise for

Keep your electric motors, power tools, and precision machinery running smoothly with the Skf 607-2RSH/C3 single-row deep groove ball bearing. Designed with a 7 mm cylindrical bore, a 19 mm outer diameter, and a 6 mm width, this steel bearing fits directly onto straight shafts. Dual rubber contact seals securely retain the factory grease while shielding the rolling elements against dust, debris, and moisture. Its increased internal C3 clearance accommodates heat buildup and thermal expansion during high rotational speeds, preventing seizure. By choosing this sealed bearing, you minimize friction and vibration while eliminating ongoing maintenance and re-lubrication needs.

Product information FAQ

€10.67

In stock - tax incl.

Key features according to our expert

Inner diameter: 7 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 19 mm

Product description

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 7 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 19 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 0.95
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 85000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 2.34
Locating feature, bearing outer ring: None
Sealing: Seal on both sides
Limiting speed: 24000
Bore diameter: 7
Coating: Without
Outer diameter: 19

Brand SKF
01011249
EAN 7316571839233
Supplier number SKF 607-2RSH/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: This ball bearing has an inside diameter of 7 mm, an outside diameter of 19 mm, and a width of 6 mm.
What does the 2RSH designation indicate?: The 2RSH suffix indicates that the bearing has rubber contact seals on both sides to keep contaminants out.
What does the C3 radial internal clearance mean?: A C3 rating means the bearing has greater radial clearance than normal, accommodating thermal expansion and high speeds.
Does this bearing require lubrication before installation?: No, the bearing comes pre-lubricated with grease from the factory and is ready to install.
What type of bore does the SKF 607-2RSH/C3 have?: This bearing features a standard cylindrical bore suitable for fitting onto straight shafts.
