SKF

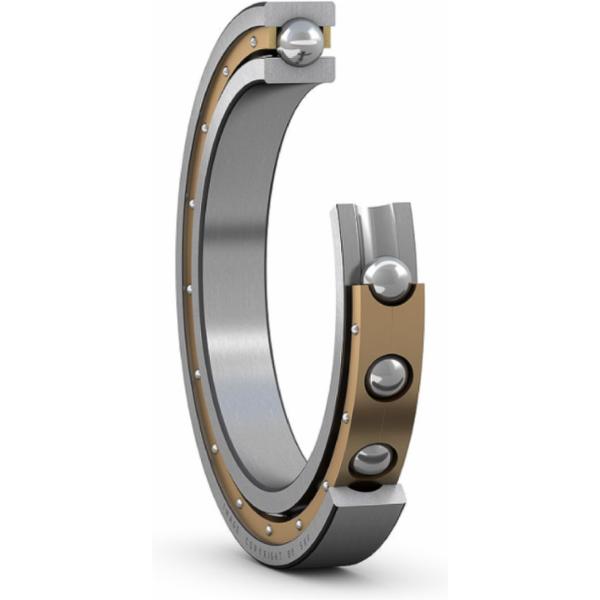

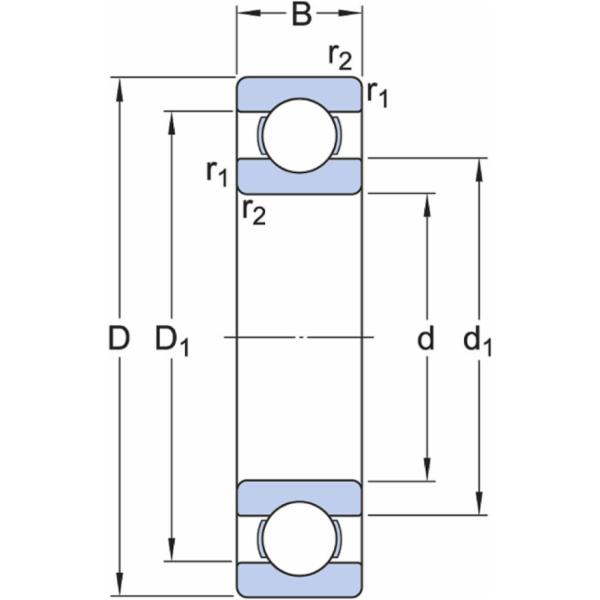

SKF 6015 M/C3S0 single-row groove ball bearing cylindrical 75x115x20 mm

This article is not available

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 20 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 115 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570684223
  • Supplier number: SKF 6015 M/C3S0
Inner diameter
75 mm
Width
20 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
115 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
33.5 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
12,000 r/min
Skf performance class
SKF Explorer
Lubricant
None
Cage
Machined metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
41.6 kN
Locating feature, bearing outer ring
None
Sealing
Without
Limiting speed
10,000 r/min
Bore diameter
75 mm
Coating
Without
Outside diameter
115 mm
