What are the dimensions of this SKF ball bearing?

The inner diameter is 60 mm, the outer diameter is 95 mm, and the width is 18 mm.

What does the 2Z suffix signify?

The 2Z suffix indicates that the bearing has metal shields on both sides to protect against dust and debris.

What radial internal clearance does this bearing have?

This bearing has normal radial internal clearance (designated as CN).

What type of bore does the SKF 6012-2Z have?

It features a standard cylindrical bore designed for straight shaft mounting.

Is this ball bearing designed for high-temperature use?

No, this standard steel bearing is not specified for high-temperature operating conditions.

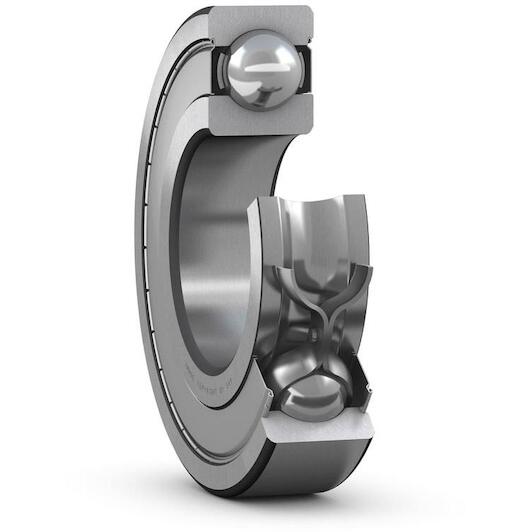

SKF 6012-2Z single-row groove ball bearing cylindrical 60x95x18 mm

Supplier number: SKF 6012-2Z | EAN 7316573400523

Recommended Retail Price €67.45

33.20 tax incl.

€27.44 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

In a nutshell

The right choise for

Keep your machinery, electric motors, and drive systems running smoothly with the Skf 6012-2Z single-row deep groove ball bearing. Fitted with dual metal shields, it retains internal lubricant while keeping out dust and debris, maximizing service life with virtually no maintenance required. The single-row geometry effortlessly handles combined radial and axial forces across both rotational directions with low friction and minimal vibration. Featuring a 60X95X18 mm cylindrical bore design and normal cn radial internal clearance, this durable steel bearing mounts straight onto your shaft for dependable everyday performance.

Product information FAQ

€33.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 95 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 95 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 23.2
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 15000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 30.7
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 7500
Bore diameter: 60
Coating: Without
Outer diameter: 95

Brand SKF
01010138
EAN 7316573400523
Supplier number SKF 6012-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The inner diameter is 60 mm, the outer diameter is 95 mm, and the width is 18 mm.
What does the 2Z suffix signify?: The 2Z suffix indicates that the bearing has metal shields on both sides to protect against dust and debris.
What radial internal clearance does this bearing have?: This bearing has normal radial internal clearance (designated as CN).
What type of bore does the SKF 6012-2Z have?: It features a standard cylindrical bore designed for straight shaft mounting.
Is this ball bearing designed for high-temperature use?: No, this standard steel bearing is not specified for high-temperature operating conditions.
