What are the dimensions of this SKF bearing?

The bearing has a 45 mm bore diameter, an 85 mm outside diameter, and a 23 mm width.

Is this ball bearing sealed?

No, this is an open bearing without built-in seals.

What does the TN9 suffix designate?

The TN9 suffix indicates a cage made of glass-fibre reinforced polyamide 6,6.

What radial internal clearance does this bearing have?

This deep groove ball bearing features standard CN (normal) radial internal clearance.

What loads can this double-row ball bearing accommodate?

The double row design accommodates both radial and axial loads in both directions.

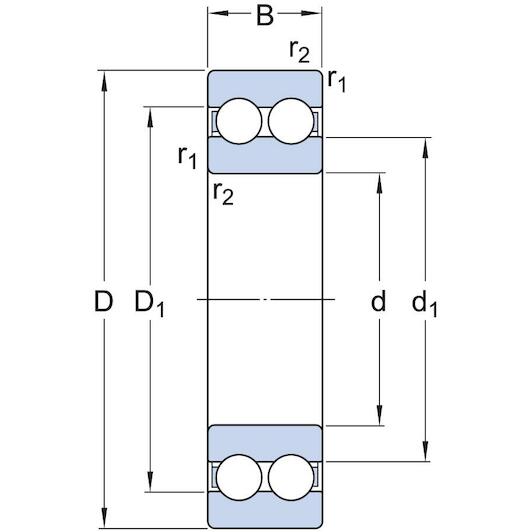

SKF 4209 ATN9 double-row groove ball bearing cylindrical 45x85x23 mm

Supplier number: SKF 4209 ATN9 | EAN 7316577004468

Recommended Retail Price €157.75

77.95 tax incl.

€64.42 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Superior load capacity with Skf

Practical benefits

Higher dynamic load ratings: The double-row layout allows you to support heavy radial and axial forces across your assembly.
Smooth and quiet operation: A lightweight polyamide cage lowers friction so you experience less heat and reduced vibration.
Built for high speeds: The open bearing design enables efficient lubricant flow so you maintain reliable high-speed performance.

In a nutshell

The right choise for

Handle demanding combined radial and axial loads with the Skf 4209 ATN9 double row deep groove ball bearing. Its dual-row design delivers significantly higher load capacity in a compact 45X85X23 mm envelope. The lightweight glass-fibre reinforced polyamide cage (TN9) reduces friction and running noise, ensuring smooth, quiet operation at high rotational speeds. Featuring an open construction, cylindrical bore, and standard radial clearance (CN), this bearing is an ideal choice for 45 mm shafts in electric motors, gearboxes, and industrial pump systems.

Product information FAQ

€77.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Plastic
Bore type: Cylindrical
High temperature: No
Outer diameter: 85 mm

Product description

Double row deep groove ball bearings correspond, in their design and operation, to a pair of single row deep groove ball bearings. They are robust in operation, requiring little maintenance, can operate at high speeds and accommodate radial and axial loads in both directions. They are slightly wider than single row bearings of the same bore and outside diameter but have a considerably higher load carrying capacity.

Versatile and robust design
High-speed capability
Accommodate high axial and radial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Plastic
Bore type: Cylindrical
High temperature: No
Outer diameter: 85 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 36
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 12000
Lubricant: None
Cage: Non-metallic
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 6700
Bore diameter: 45
Basic dynamic load rating: 39
Outer diameter: 85

Brand SKF
01020010
EAN 7316577004468
Supplier number SKF 4209 ATN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 45 mm bore diameter, an 85 mm outside diameter, and a 23 mm width.
Is this ball bearing sealed?: No, this is an open bearing without built-in seals.
What does the TN9 suffix designate?: The TN9 suffix indicates a cage made of glass-fibre reinforced polyamide 6,6.
What radial internal clearance does this bearing have?: This deep groove ball bearing features standard CN (normal) radial internal clearance.
What loads can this double-row ball bearing accommodate?: The double row design accommodates both radial and axial loads in both directions.
