SKF

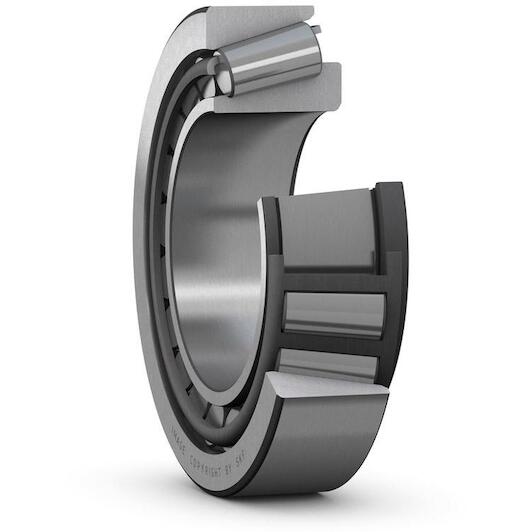

SKF 36990/36920 single-row tapered roller bearing cylindrical 177.8 x 227 mm 16°

Recommended Retail Price €1,150.64
569.60 tax incl.
€470.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Ordered before 20:00 - delivered as of 01/06/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 177,8 mm
  • Width: 30,162 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577450203
  • Supplier number: SKF 36990/36920
Inner diameter
177,8 mm
Width
30,162 mm
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
23.02
Lubricant
None
Skf performance class
SKF Explorer
Reference speed
2000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
425
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, total
30.162
Width, inner ring
30.162
Contact angle
16.366666666707
Limiting speed
2400
Bore diameter
177.8
Number of rows
1
Basic dynamic load rating
231
Coating
Without
Outside diameter
227.012
Unit system
Inch
