SKF

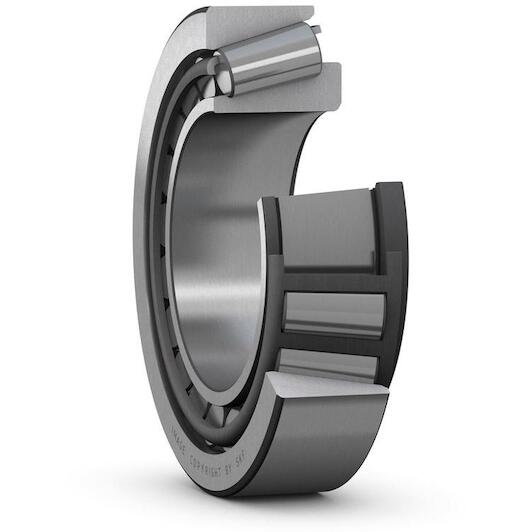

SKF 33220 single-row tapered roller bearing 100 x 180 x 63 mm with contact angle 15°

Recommended Retail Price €1,881.59
931.40 tax incl.
€769.75 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 100 mm
  • Number of rows: 1
  • Outer diameter: 180 mm
  • Width: 63 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577662828
  • Supplier number: SKF 33220
Inner diameter
100 mm
Number of rows
1
Outer diameter
180 mm
Width
63 mm
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
48
Lubricant
None
Arrangement of contact angle (double-row bearing)
Not applicable
Reference speed
2600
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
655
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Skf performance class
SKF Explorer
Width, inner ring
63
Width, total
63
Contact angle
15.083333333371
Limiting speed
3600
Bore diameter
100
Basic dynamic load rating
532
Coating
Without
Outside diameter
180
Unit system
Metric
