What are the exact dimensions of this SKF tapered roller bearing?

The bearing has an inside diameter of 80 mm, an outside diameter of 140 mm, and a total width of 46 mm.

What loads can this single-row tapered roller bearing accommodate?

It is designed to accommodate combined loads, supporting heavy radial forces and axial forces in one direction simultaneously.

Are the inner and outer rings separable?

Yes, the inner ring assembly (cone) and the outer ring (cup) can be mounted and dismounted separately.

What is the significance of the 15.8° contact angle?

The contact angle determines axial load capacity; a larger angle allows the bearing to support heavier axial forces.

Is this bearing used individually or in pairs?

Single-row tapered roller bearings are typically mounted in pairs (in X, O, or tandem arrangements) to manage two-directional axial loads.

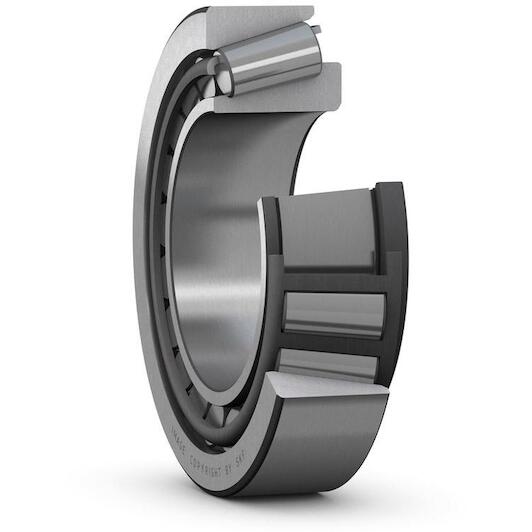

SKF 33216/Q single-row tapered roller bearing 80 x 140 x 46 mm with contact angle 15.8° - 33216

Supplier number: SKF 33216 | EAN 7316577006479

Recommended Retail Price €396.28

195.95 tax incl.

€161.94 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Ordered before 20:00 - delivered as of 17/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable power transmission with Skf

Practical benefits

High combined load capacity: You support high radial and axial loads simultaneously within demanding industrial and mechanical systems.
Easy mounting and maintenance: The separable cup and cone design lets you mount and inspect components quickly and independently.
Low friction during operation: Optimized roller contact reduces operating heat, extending the service life and efficiency of your machinery.

In a nutshell

The right choise for

With the Skf 33216/Q single-row tapered roller bearing, you ensure dependable power transmission across demanding industrial systems. This bearing reliably accommodates heavy radial forces and single-direction axial thrust loads simultaneously, preventing shaft misalignment and premature bearing failure under high dynamic stress. Featuring an 80 mm inner diameter, a 140 mm outer diameter, a 46 mm width, and a 15.8° contact angle, it delivers superior rigidity in heavy-duty gearboxes, transmissions, and wheel hub assemblies. The separable cup and cone design enables fast, independent mounting and maintenance. Its optimized raceway profile reduces friction and operating heat, significantly extending the service life of your machinery.

Product information FAQ

€195.95

tax incl.

Key features according to our expert

Inner diameter: 80 mm
Number of rows: 1
Outer diameter: 140 mm
Width: 46 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Number of rows: 1
Outer diameter: 140 mm
Width: 46 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 35
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 3400
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 375
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 46
Width, total: 46
Contact angle: 15.833333333373
Limiting speed: 4500
Bore diameter: 80
Basic dynamic load rating: 308
Coating: Without
Outer diameter: 140
Unit system: Metric

Brand SKF
01110291
EAN 7316577006479
Supplier number SKF 33216

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF tapered roller bearing?: The bearing has an inside diameter of 80 mm, an outside diameter of 140 mm, and a total width of 46 mm.
What loads can this single-row tapered roller bearing accommodate?: It is designed to accommodate combined loads, supporting heavy radial forces and axial forces in one direction simultaneously.
Are the inner and outer rings separable?: Yes, the inner ring assembly (cone) and the outer ring (cup) can be mounted and dismounted separately.
What is the significance of the 15.8° contact angle?: The contact angle determines axial load capacity; a larger angle allows the bearing to support heavier axial forces.
Is this bearing used individually or in pairs?: Single-row tapered roller bearings are typically mounted in pairs (in X, O, or tandem arrangements) to manage two-directional axial loads.
